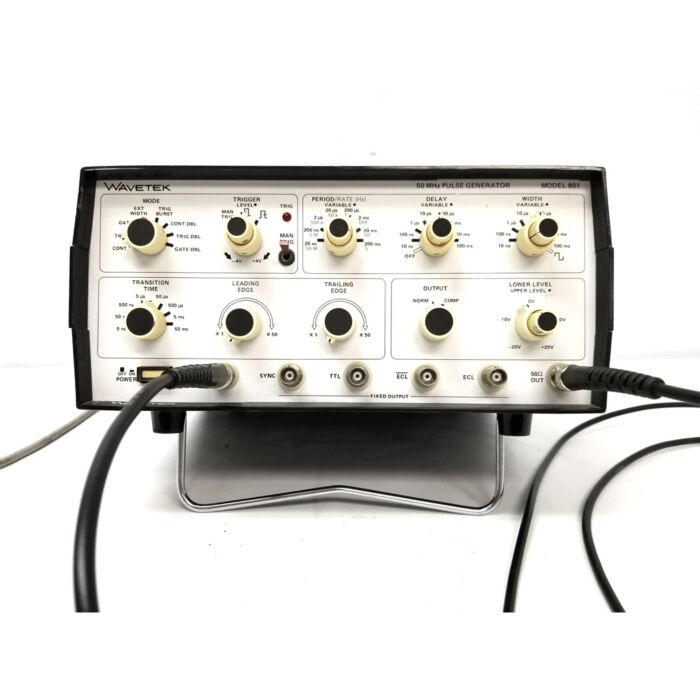

Used Wavetek 801 Pulse Generator, 50MHz

Product Highlights

The 801 is a used Pulse Generator from WaveTek. A pulse generator is a piece of electronic test equipment that engineers use to generate rectangular pulses. An electromagnetic pulse generator is best for digital, not analog, circuits. Engineers can inject pulses into a piece of equipment under test as a stimulus as they test the device, using pulses to confirm the equipment's proper operation.

The output circuits of the WaveTek 801 give you a variable amplitude pulse and , simultaneously, ECL, TTL and sync pulses. The upper and lower levels of the variable pulse are independently adjustable from -20 to +20 volts.

• Frequency range: 5 Hz to 50 MHz
• Variable Rise and Fall Times
• Full 20 Volt Output
• Pulse Burst Output
