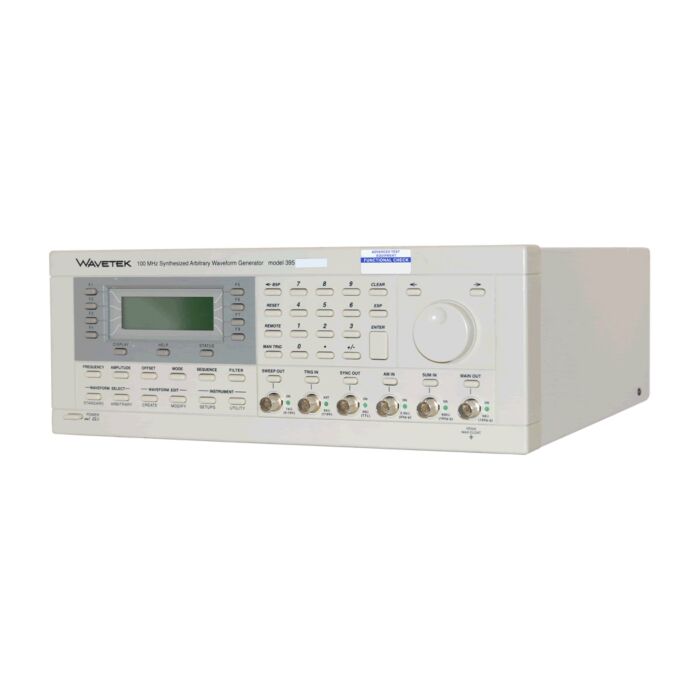

Used Wavetek 395 Synthesized Arbitrary Waveform Generator

Amplitude:
- Range: 10 mVp-p to 10 Vp-p in 50 ohms
- Resolution: 3.0 digits
Offset:
- Range: ±5 V into 50 ohms
- Resolution: 3 digits
Frequency: - Sine and Haversine
- Range: 1 µHz to 40 MHz
- Resolution (limited by 1 µHz):
  - ≤20 MHz: 10 digits; ±30 ppm
  - >20 MHz: 4 digits; ±100 ppm
Frequency - Square:
- Range: 1 µHz to 50 MHz
- Resolution: 4 digits; ±100 ppm
Frequency - Triangle:
- Range: 1 µHz to 10 MHz
- Resolution (limited by 1 µHz):
  - ≤100 MHz: 10 digits; ±30 ppm
  - >100 kHz: 4 digits; ±100 ppm
Frequency - Ramp:
- Range: 1 µHz to 1 MHz
- Resolution (limited by 1 µHz):
  - ≤100 MHz: 10 digits; ±30 ppm
  - >100 kHz: 4 digits; ±100 ppm
Arbitrary Waveforms:
- Sampling Frequency
  - Range: 100 mS/s to 100 MS/s
  - Resolution: 4 digits
- Waveform Memory Size: 64 k points; 256 k points optional
- Minimum Waveform Size: 10 points
- Vertical Resolution: 12 bits
Noise:
- White - (Analog) BW Range: 10 mHz to 10 MHz
- Digital - Clock Range: 10 mHz to 100 MHz
- Comb - Start/Stop Range: 1 Hz to 10 MHz
- Signal-Plus-Noise, Signal-Plus-Comb
Operational Modes:
- Continuous, Gated, Triggered, Sweep
Inputs:
- Trigger Input, Sum Input, Reference Input
Outputs:
- Reference Output, Main Output, AM Input, Sweep Output, Sync Output
