Overview

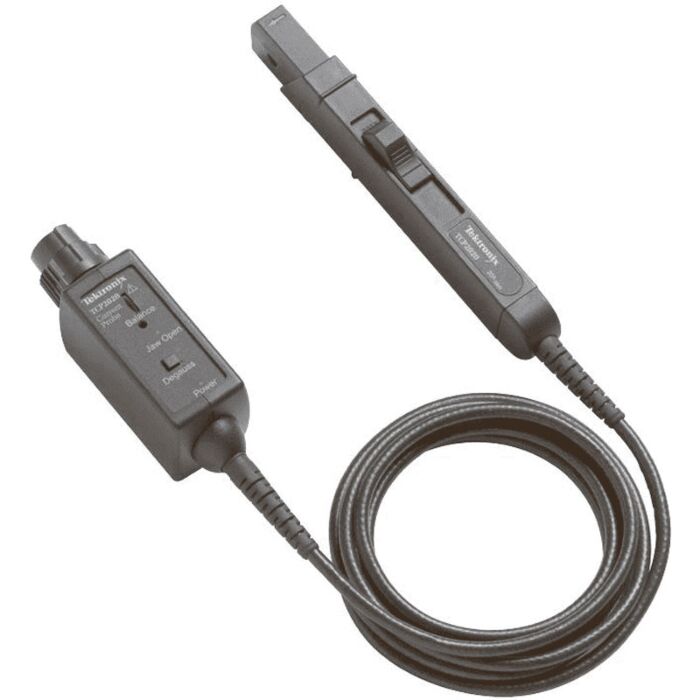

The TCP2020 is a of high-performance, easy-to-use AC/DC current probe designed for use with a variety of oscilloscopes. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kOhm input termination.
These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range, while the TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today's challenging current measurement needs.
Easy-to-Use and Accurate AC/DC Current Measurements
DC to >50 MHz Bandwidth
20A
BNC Output Connects to Most Oscilloscopes and Other Measurement Equipment (>100 kOhm Termination Required)
Core Jaw Diameter of 5 mm (0.2 in.)
Accurately Measures Current Levels as Low as 10 mA per Division
High Accuracy with Typically Less than 1% DC Gain Error
Split-core Construction allows Easy Circuit Connection
Low Noise and DC Drift
Safety Certified
20 ARMS Maximum Current Capability
100 A Peak Pulse Current Capability
10 mA/mV Sensitivity
Degauss Button and Thumbwheel for DC Offset Adjustment
