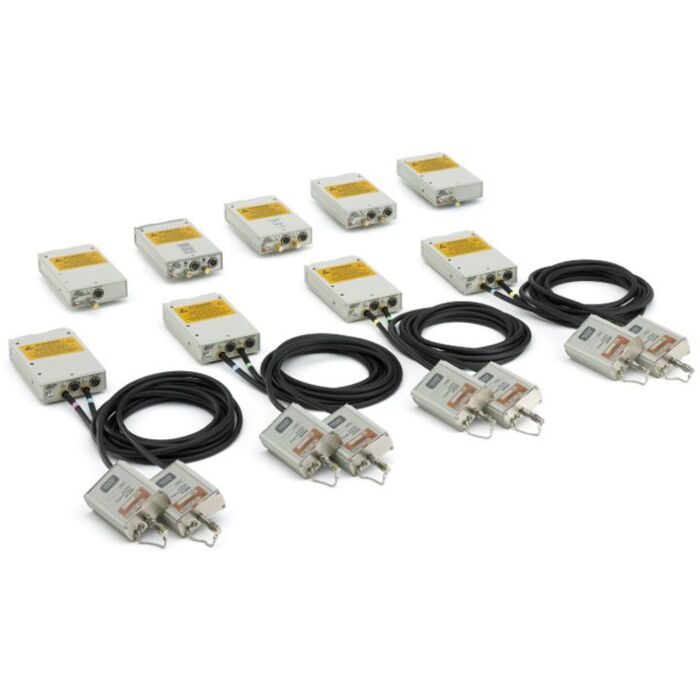

Used Tektronix 80E10B Remote Electrical Sampling Module with TDR, 50GHz, 2 Channel
Remote Electrical Sampling Module w/TDR,50GHz,2-Channel
Order #: 80E10B-USED
Mfg #: 80E10B
Call for price
Call for price
Used Tektronix 80E10B Remote Electrical Sampling Module with TDR, 50GHz, 2 Channel
Remote Electrical Sampling Module w/TDR,50GHz,2-Channel
Order #: 80E10B-USED
Mfg #: 80E10B
Call for price
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Call for price
Availability: Ships in 3-4 weeks
Product Highlights
- High-performance TDR/T Measurements
- Impedance Profile, Inductance, Capacitance, and S-parameters
- Transmission Line Quality, Impedance, and Crosstalk
- True Differential, Common Mode, and Single-ended Measurements
- Efficient Fault Isolation
The 80E10, 80E08, and 80E04 are dual-channel Time Domain Reflectometry (TDR) sampling modules, providing up to 12 ps incident and 15 ps reflected rise time in the 80E10 (18 ps incident in 80E08 and 23 ps incident in 80E04). Each channel of these modules is capable of generating a fast step for use in TDR mode and the acquisition portion of the sampling module monitors the incident step and any reflected energy. The polarity of each channel
