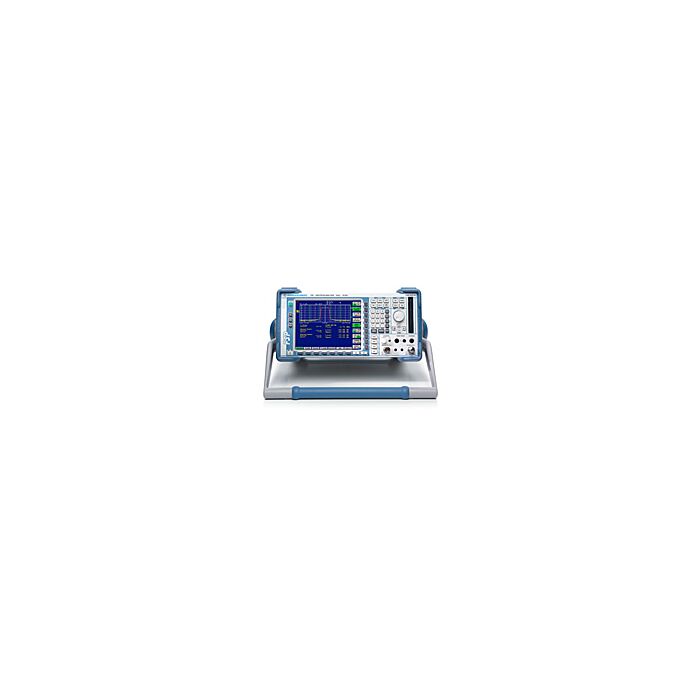

Used Rohde & Schwarz FSP40 Spectrum Analyzer, 9kHz to 40GHz

Product Highlights

The FSP40 is a 40 GHz Spectrum Analyzer from Rohde & Schwarz. A spectrum analyzer measures the power of spectrums of known and unknown signals. Spectrum analyzers collect information such as the magnitude of an input signal compared to its frequency. As a frequency analyzer, spectrum analyzers' main use is to document and analyze electrical input signals as well as spectral compositions of other signals.

• Frequency range 9 kHz to 3GHz, 7 GHz, 13 GHz, 30 GHz and 40 GHz
• Resolution bandwidth 1 Hz to 10 MHz
• Displayed average noise level -155 dBm (1 Hz)
• Phase noise -113 dB (1 Hz) at 10 kHz
• Additional filters:
  • Channel filters from 100 Hz to 5 MHz and RRC filters
  • FFT filters from 1Hz to 30 kHz
  • EMI bandwidths and quasi-peak detector
• Measurement functions for TOI, MC ACP(R), OBW, CCDF, APD, etc
• Measurement applications for cellular standards and general purpose, e.g. phase noise, noise figure, etc.
