Overview
Product Highlights

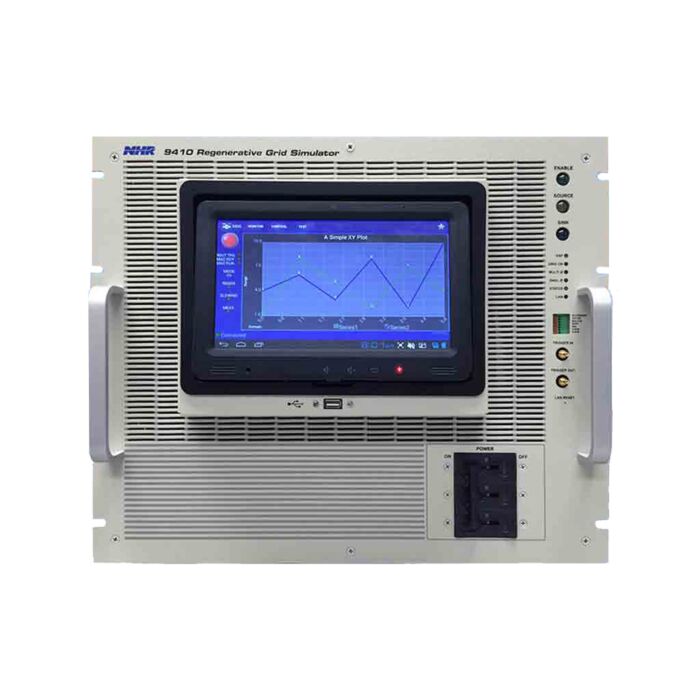

The 9410 is a four-quadrant (bi-directional) AC/DC source with selectable phase outputs, a built-in waveform-digitizing measurement system and robust line disturbance creation tools. When used in the regenerative (sink) mode, it sends returned power back to the facility mains rather than being dissipated as heat. The most frequent application of the 9410 is use as a grid simulator for testing PV inverters and other grid-tied products for compliance to industry standards.
8 models - 4kW/10.5kVA to 96kW/252kVA
Output AC Voltage Ranges - 175, 350VRMS L-N
Output DC Voltage - 200, 400VDC
Output Frequency - DC, 30 to 100Hz
Programmable 1, 2 or 3-Phase modes
Full 4 quadrant AC source operation
High resolution waveform capture on all V & I
Sink power regenerated back to facility
9" Touch-Panel user interface
SCPI programming & NI LabVIEW drivers
Bi-directional AC – Inverter testing & μgrid simulation
More reactive power per kW
Simplifies automated test stand development – Software selectable 1, 2, or 3 Phase operation – Isolated digital inputs & outputs – Built-in SW watchdog & safety limits
Software tools to shorten test development time – PC-based tools & NI certified drivers – NI certified LabVIEW & IVI-C/IVI-COM drivers – Optional: Enerchron test sequencer
Regenerative, returns greater than 85% of power to the facility, which provides significant electrical savings.
