Product Highlights
When used with the N192XA wideband power sensors, the N1911/12A P-Series power meter provides a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability.
-
30 MHz video bandwidth
-
Single shot real time capture at 100 Msample/s per second
-
Key Measurements: - peak, average, peak-to-average ratio, rise time, fall time and pulse width
-
22 Predefined formats: WiMAX, DME, HSDPA, etc.
-
One screen view for pulse measurement analysis: Auto Scale, Auto Gate, Rise/Fall Time, Duty Cycle, etc.
-
Internal Zeroing and Calibration while connecting to the DUT
-
BenchVue software enabled
-
LXI-C Compliance
-
Average triggering for average power measurement
-

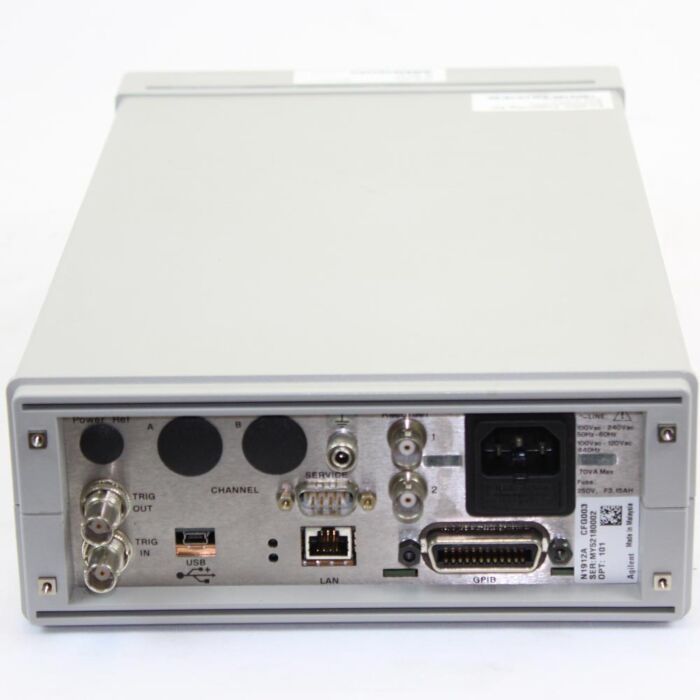

Versatile connectivity with USB, LAN and GPIB standard
-
High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
-
Compatible with the industry standard 8480 and E-series sensors which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz.
-
Compatibility with E932x power sensors
-
Difference and ratio math functions : (A-B, B-A, A/B and B/A)
-
2-year calibration cycle
