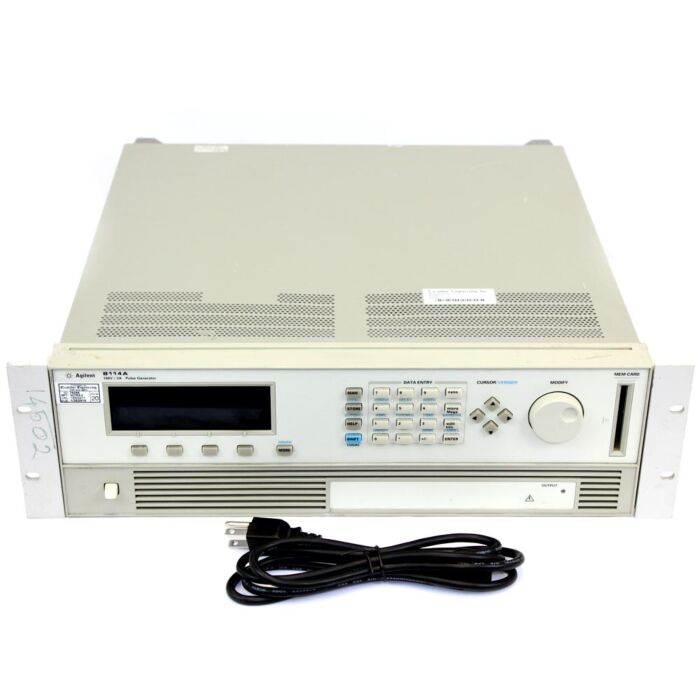

Used Keysight / Agilent 8114A Single-channel Pulse Generator, 100V/2A, 15MHz, Single-channel

Order # 8114A-USED | Mfg # 8114A
$14,995.00

Request a Used Instrument Quote









Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee, Calibration Certificate Included, 6 Month Warranty, Unsurpassed Service & Support

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Today's telecommunications and computer systems increasingly take advantage of devices such as laser and IR diodes, EEPROMS and flash memories which operate at high voltages or currents.

  • Single-channel high power pulse generator
  • 15 MHz
  • 50 Vpp 50 Ω / 50 Ω
  • Max. amplitude 100 V (HI-Z/50 Ω)
  • Max. current 2 A (HI-Z/50 Ω)
  • Voltage, current, and duty cycle protection
  • Optional baseline shift of +/- 25 V
  • Fast, clean positive or negative pulses up to 100 V at frequencies up to 15 MHz
  • User-definable limits for voltage, current and duty cycle
  • TLL input: allows the output to be enabled or disabled
  • Transitions < 12 ns for high impendance source into 50 Ohm load. Baseline OV.
  • In 50 Ohm/50 Ohm mode, the maximum voltage is 50 Vpp with transitions < 7ns
