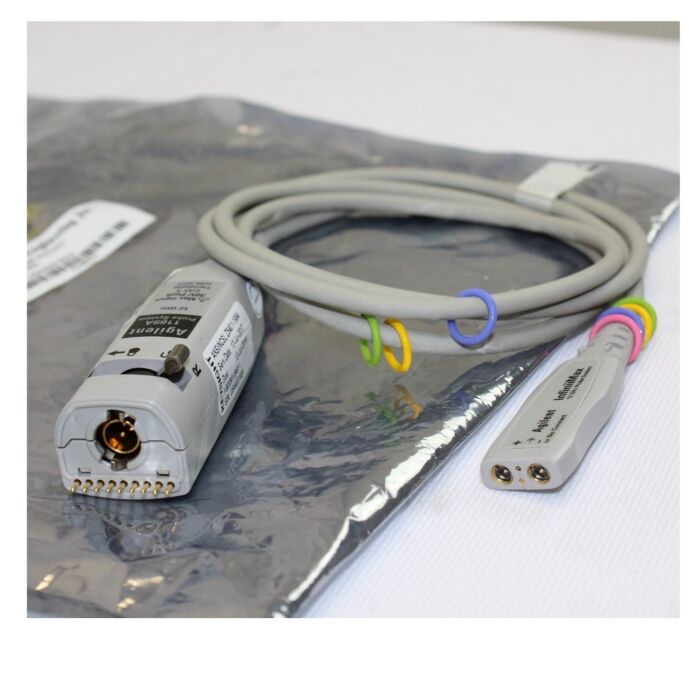

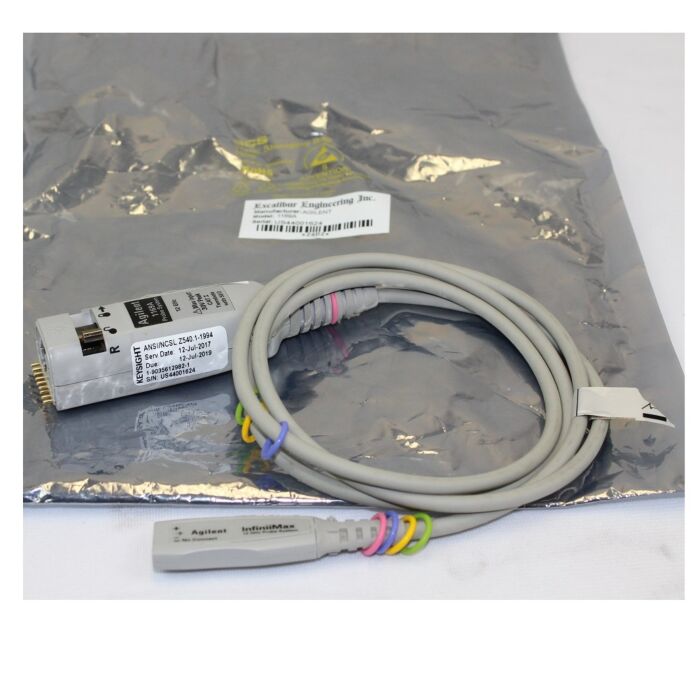

Used Keysight / Agilent 1169A InfiniiMax II Series Probe Amplifier, 12 GHz

Order # 1169A-USED | Mfg # 1169A
$4,799.00

Request a Used Instrument Quote









Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee, Calibration Certificate Included, 6 Month Warranty, Unsurpassed Service & Support

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Key Features & Specifications

Bandwidth:

  • 12 GHz specified
  • 13 GHz typical

Range:

  • Dynamic Range: 3.3 V peak-to-peak
  • DC Offset Range: +/- 16V
  • Maximum Voltage: +/- 30V

Input Impedance:

  • Differential Input R: 50 kOhm
  • Differential Input C: 0.21 pF
  • Single Ended Input R: 25 kOhm
  • Single Ended Input C: 0.35 pF

Connectivity:

  • N2839A Differential browser
  • N5380B Differential SMA head
  • N5381B Differential solder-in head
  • N5425B Differential ZIF head (requires N5426A ZIF tip or N5451A Long wire ZIF tip)

Description

InfiniiMax II series 1169A 12 GHz probing system designed to be used with DSO91204A and DSO91304A Infiniium oscilloscopes provides real-time bandwidth to 12 GHz specified and has 13 GHz typical performance. The innovative InfiniiMax probing system supports even the most demanding mechanical access requirements without sacrificing performance.
