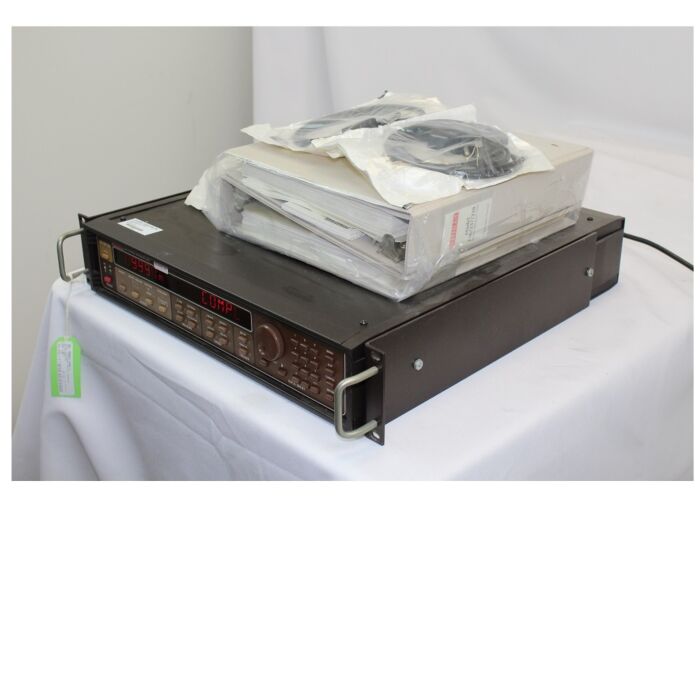

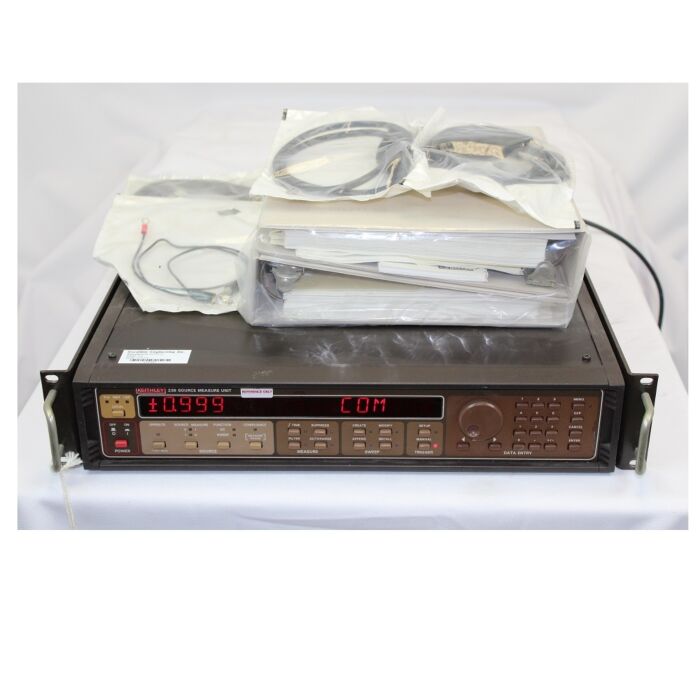

Used Keithley 236 Source Measurement Unit, 100V - 110V / 100fA - 100mA

Order # 236-USED | Mfg # 236
$1,999.00
Also Available:

Request a Used Instrument Quote









Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee, Calibration Certificate Included, 6 Month Warranty, Unsurpassed Service & Support

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Features:

  • Four instruments in one (voltage source, voltage measure, current source, current measure)
  • 10fA, 10µV measurement sensitivity
  • Standard and custom sweep capability including pulse
  • 1000 source/measurements per second
  • Four quadrant source operation
  • Internal 1000-reading memory

The Keithley 236 will source voltage from 100μV to 110V, and current from 100fA to 100mA. It can also measure voltage from 10μV to 110V and current from 10fA to 100mA.

The 236 can be programmed to perform source-measurements as a function of a stepped voltage or current. Voltage and current can be swept linearly, logarithmically, or pulsed. The START, STOP, STEP method of setting sweep parameters allows operators to become proficient at using the instrument very quickly. Sweep parameters may be appended (APPEND key) to obtain more complex test sequences.
