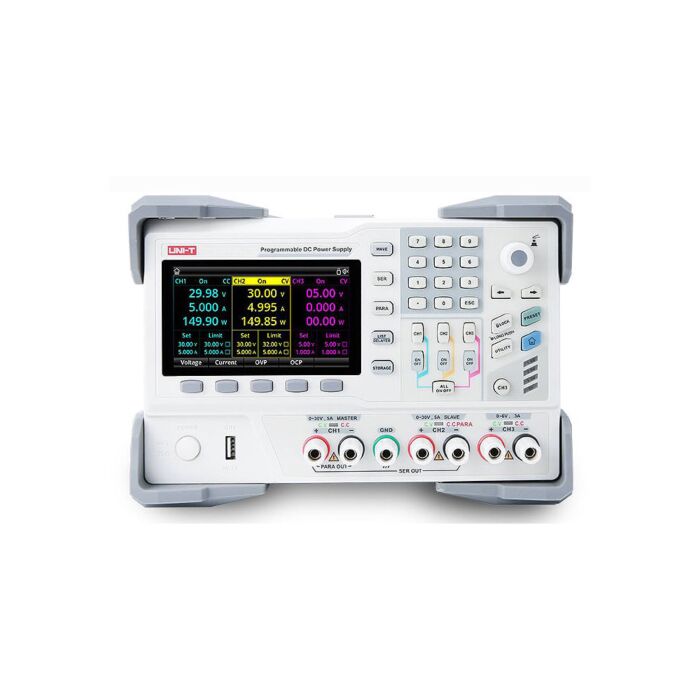

The UNI-T UDP3305SE is a high-performance programmable linear DC power supply. It has a clear LCD user interface, excellent performance indicators, a variety of analysis functions and communication interfaces. It can meet the diversified test needs of users. It aims to provide cost-effective DC programmable power supply equipment for teaching, scientific research, industry and other fields.
- Maximum power up to 328W
- 4-Channel independent output: CH1/CH2: 0-30V/5A,CH3: 0-6V/3A,CH4: 5V/2A
- Voltage full scale, 4-Digit 4.3 Inch LCD
- Current full scale, 4-Digit 4.3 Inch LCD
- Programming resolution: Voltage: 10mV / Current: 1mA
- Multiple protection: OCP/OCP/OTP
- Excellent load regulation and line regulation
- Ultra low output ripple and noise
- Support one key serial and parallel output function
- 4.3" TFT display can display three channels and multiple parameters at the same time
- List/delayer function to control voltage and current output as required
- External trigger function to realize industrial automation control
- Provide USB host, USB device, LAN, RS232, digital IO and other interfaces
- With waveform display function, real-time and dynamic display of output voltage/current/power waveform
- Intelligent speed control of fan can effectively reduce fan noise during operation
- Support 10 groups of file storage and transfer out, and support USB flash disk reading and writing
- High precision display of five-digit voltage / four-digit current, with resolutions of 10mV/1mA and 1mV/1mA
- Keyboard lock function to prevent misoperation
- Support SCPI remote command control
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Multi-Rail / Mixed-Voltage System Development
- Prototyping / Circuit Testing / Lab Work
- Board Bring-Up & Debug / Repair / Diagnostics
- Automated / Test Bench / Production Testing
- Educational / Teaching Labs
- R&D / Research / Experimental Projects
Each Unit Includes
- 1 - 4-Channel Advanced-Series Programmable Linear DC Power Supply (UDP3305S-E)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
- 1 - Digital IO Plug
