TorcUp TX-2

Order # TX-2 | Mfg # TX-2
Save 14%
$1,975.00
$1,695.70
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

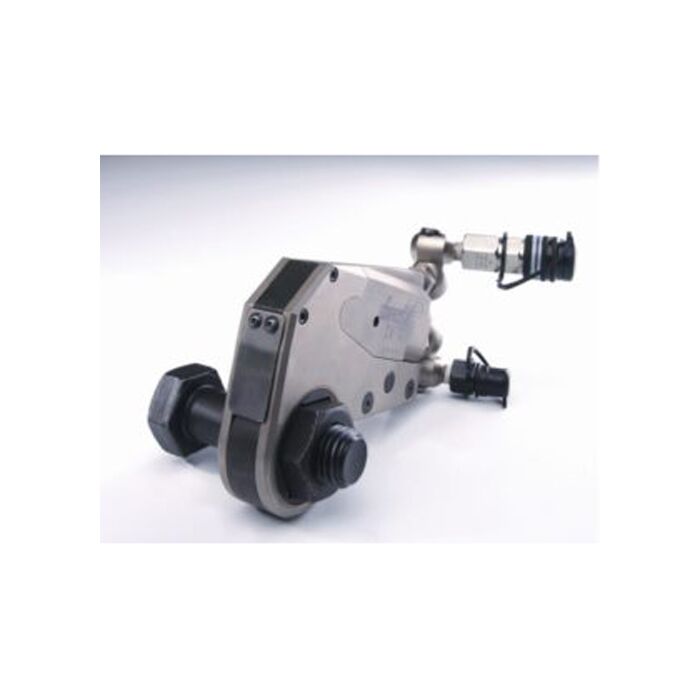

TX low profile hydraulic wrench

This slim and tough tool is a unique hydraulic wrench amongst copies, knock-offs and many older or lower quality alternatives. Put TorcUP's TX to the test and become a fan of us! The TX is the most sturdy, advanced and easy-to-handle low profile hydraulic torque wrench that has ever been manufactured. It will meet all your expectations with these features:

TX features

  • completely flat cylinder and Hex Link Design
  • small radius link cassettes
  • torsion resistant link design
  • patented "Peanut Shaped" piston fits where others can not
  • only 3 mechanically moving parts, simple but smart design
  • housing can be used for bracing the tool (no external arm needed)
  • sturdy multi-tooth ratchet systemTX accessories
  • never-lock torque mechanism
  • quick change single pin release system (no tools required)
  • multi-axis swivels for complete 360 x 360 degree adjustability
  • quick-connect, no-drip, high pressure couplers

TX technical data and measurement sheat - check it out

Sizes, heights, weights and why competitor's tools cannot compete, available hexagon sizes, center of bolt radius TX2RL - TX45RL, accessories and bolting applications with TX wrenches in use, check out the technical data of our TX series.

TX-1 up to 800 Nm initiated by naval industry, used in steel construction and aircraft turbines, the smallest TorcUP hydraulic wrench excels in tight and narrow places.

TX wrench works with:

  • inline reaction arm
  • low point reaction paddle
  • hex to square adaptor
  • stack socket
  • hex reducer
  • allen wrench inserts

Specifications

model TX-2
max. power[Nm] 3.000
width across flats SW [mm] 19-65
height H 1 [mm] 100
height H 2 [mm] 128
radius R2 (at SW) [mm] 36,2 (46)
radius R1 (at SW) [mm] 9,8 (46)
width [mm] 32
length L1 [mm] 164
weight [kg] starting at 2,5
