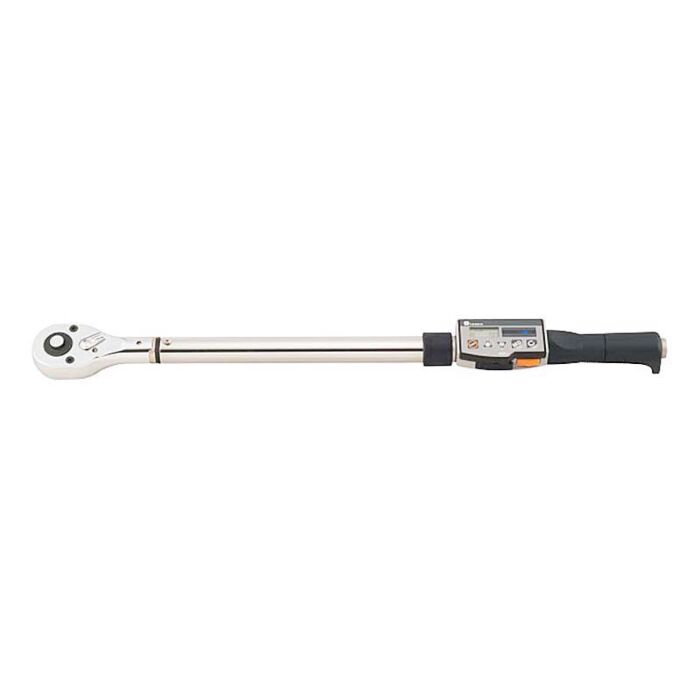

Tohnichi CPT280X22D-G-SET
ProTork,Digi Wrench w/Case, 42-200,0.2lbf.ft,3/4" Sq Dr
Order #: CPT280X22D-G-SET
Mfg #: CPT280X22D-G-SET
Special Price
$903.34
Regular Price
$961.00
Tohnichi CPT280X22D-G-SET
ProTork,Digi Wrench w/Case, 42-200,0.2lbf.ft,3/4" Sq Dr
Order #: CPT280X22D-G-SET
Mfg #: CPT280X22D-G-SET
Special Price
$903.34
Regular Price
$961.00
Availability: Ships in 4-6 weeks
Product Highlights
- Equipped with high brightness LED, which allows easy tracking of the tightening condition.
- Saved data can be output through USB cable.
- Intuitive machine interface, bright LED lamp indicates the current torque level against the target torque.
- Robust and durable aluminum body.
- With CE mark. For international use including the EU region.
- Applicable for international use including the EU region.
- Compliant with calibration procedures of ISO 6789 Type I Class C.
- Tohnichi's interchangeable head torque wrenches can be used with our interchange head lineup which offers the best selection in the world, making these wrenches ideal for your work.
Accuracy +/-3% | |||||||||||||||
MODEL | CPT20X10D-G | CPT50X12D-G | CPT100X15D-G | CPT200X19D-G | CPT280X22D-G | ||||||||||
TORQUE RANGE [N · m] |
MIN. ~ MAX. | 4~20 | 10~50 | 20~100 | 40~200 | 56~280 | |||||||||
1 DIGIT | 0.02 | 0.05 | 0.1 | 0.2 | |||||||||||
TORQUE RANGE [kgf · cm] |
MIN. ~ MAX. | 40~200 | 100~500 | 200~1000 | 400~2000 | 560~2800 | |||||||||
1 DIGIT | 0.2 | 0.5 | 1 | 2 | |||||||||||
TORQUE RANGE [kgf · m] |
MIN. ~ MAX. | 0.4~2 | 1~5 | 2~10 | 4~20 | 5.6~28 | |||||||||
1 DIGIT | 0.002 | 0.005 | 0.01 | 0.02 | |||||||||||
TORQUE RANGE [lbf · in] |
MIN. ~ MAX. | 36~180 | 100~440 | 200~880 | 360~1700 | 500~2400 | |||||||||
1 DIGIT | 0.2 | 0.5 | 1 | 0.2 | |||||||||||
TORQUE RANGE [lbf · ft] |
MIN. ~ MAX. | 3~14.5 | 7.5~36 | 15~73 | 30~150 | 42~200 | |||||||||
1 DIGIT | 0.02 | 0.05 | 0.1 | 0.2 | |||||||||||
MAX. HAND FORCE [N] | 81.6 | 196.9 | 275.5 | 428.3 | 466.7 | ||||||||||
DIMENSION [mm] |
EFFECTIVE LENGTH | L | 245 | 254 | 363 | 467 | 600 | ||||||||
OVERALL LENGTH | L'1 | 280.5 | 282.5 | 384.5 | 475.5 | 591.5 | |||||||||
L'2 | 330 | 339 | 475.5 | 556 | 700 | ||||||||||
SQ. DRIVE | a | 9.5 | 12.7 | 19 | |||||||||||
b | 11 | 15.5 | 23 | ||||||||||||
HEAD | C | 32 | 40 | 63 | |||||||||||
h | 32 | 40 | 55 | ||||||||||||
WEIGHT [kg] | 0.63 | 0.65 | 0.85 | 1.37 | 1.76 |
MODEL | CPT20X10D-G-SET | CPT50X12D-G-SET | CPT100X15D-G-SET | CPT200X19D-G-SET | CPT280X22D-G-SET | ||||||||||
STANDARD ACCESSORIES | RATCHET HEAD | TQH10D | TQH12D | TQH15D | TQH19D | TQH22D | |||||||||
STORAGE CASE | CPT Small case (844) | CPT Large case (845) | |||||||||||||
BATTERY | AA Ni-mh Battery x 2 |
DISPLAY | 14-segment LCD 6 line 7mm height | ||||||||
7-segment LCD 4line 3mm height | |||||||||
Battery life indicator (4 steppers) | |||||||||
MEMORY | 50 | ||||||||
TORQUE SETTING MEMORY | Preset mode: 10 torque values to register | ||||||||
Judge mode: Up to 10 values of each Upper/Lower/Tightening direction | |||||||||
BASIC FUNCTION | Auto power o? (3 minutes) | ||||||||
Auto memory/Reset | |||||||||
Auto zero | |||||||||
COMMUNICATION FUNCTION | RS232C compliance | ||||||||
POWER | AA battery x 2 pcs | ||||||||
CONTINUOU USE | Approx. 40 hours | ||||||||
TEMPERATURE IN USE | 0~40°C below 85% RH (no condensation) |
