US
CAN - en Tohnichi 5FTD-A
Dial Indicating Type Torque Driver 1-5, 0.1lbf.in, 1/4"Hex
Order #: 5FTD-A
Mfg #: 5FTD-A
Special Price
$280.60
Regular Price
$305.00
Tohnichi 5FTD-A
Dial Indicating Type Torque Driver 1-5, 0.1lbf.in, 1/4"Hex
Order #: 5FTD-A
Mfg #: 5FTD-A
Special Price
$280.60
Regular Price
$305.00
Availability: Ships in 2-3 weeks
Available Promotions
Only need this item for a short time? Learn about rentals
Questions about this product? Speak to an expert
Product Highlights
- Direct reading torque screwdriver ideal for inspection.
- Features Pre-load Knob
- Pre-load knob is designed to apply preliminary torque, which helps to reduce amount of turning and strain on the wrist.
- Bi-directional scale plate
- Available in SI, Metric or American units scales. Select model by unit and torque range required.
- Metal Handle
- Accepts 1/4" hex root bits. Includes 2 bits: plus and minus type.
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO
| Accuracy ±3% | ||||||||||||
| S.I. MODEL | FTD50CN | FTD100CN | FTD200CN | FTD400CN | ||||||||
| TORQUE RANGE [cN · m] |
MIN.~MAX. | 10~50 | 20~100 | 40~200 | 80~400 | |||||||
| GRAD. | 1 | 2 | 5 | 10 | ||||||||
| METRIC MODEL | 5FTD | 10FTD | 20FTD | 40FTD | ||||||||
| TORQUE RANGE [kgf · cm] |
MIN.~MAX. | 1~5 | 2~10 | 4~20 | 8~40 | |||||||
| GRAD. | 0.1 | 0.2 | 0.5 | 1.0 | ||||||||
| AMERICAN MODEL | 5FTD-A | 10FTD-A | 20FTD-A | 40FTD-A | ||||||||
| TORQUE RANGE [lbf · in] |
MIN.~MAX. | 1~5 | 1~10 | 3~20 | 5~40 | |||||||
| GRAD. | 0.1 | 0.2 | 0.5 | 1.0 | ||||||||
| APPLICABLE SCREW | SMALL SCREW | M2.5 | M3(M3.5) | M4 | M5 | |||||||
| TAPPING SCREW | (M2.2) | M2.5, M3 | (M3.5) | M4 | ||||||||

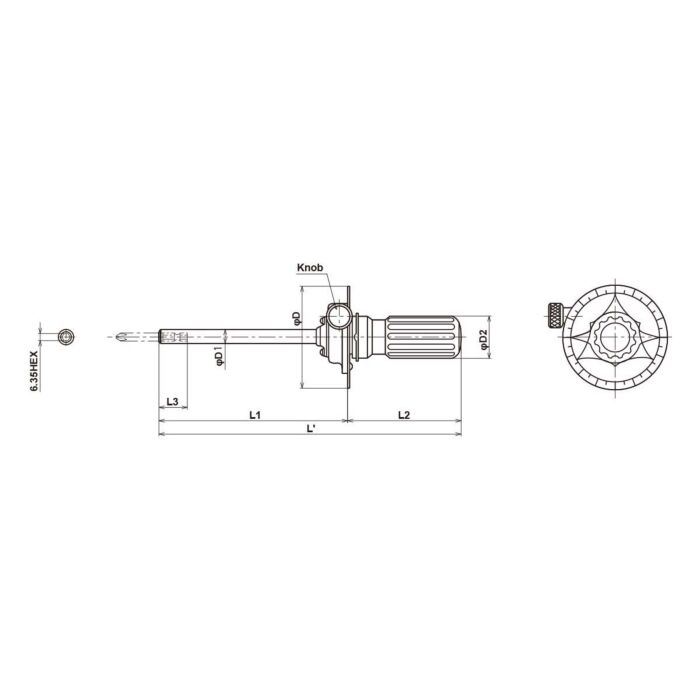

| DIMENSION [mm] |
OVERALL LENGTH | L' | 215.5 | 263.5 | ||||||||
| SCALE PLATE OUTSIDE DIA. | D | 75 | 78 | |||||||||
| TUBE DIA. | D1 | 11 | 13 | |||||||||
| BODY | D2 | 30 | 33 | |||||||||
| L1 | 130.5 | 158.5 | ||||||||||
| L2 | 85 | 105 | ||||||||||
| L3 | 24 | |||||||||||
| WEIGHT [kg] | 0.3 | 0.5 | ||||||||||
| ACCESSORY BIT | + | #1 | #2 | |||||||||
| -thickness X width | 0.7
| |||||||||||
