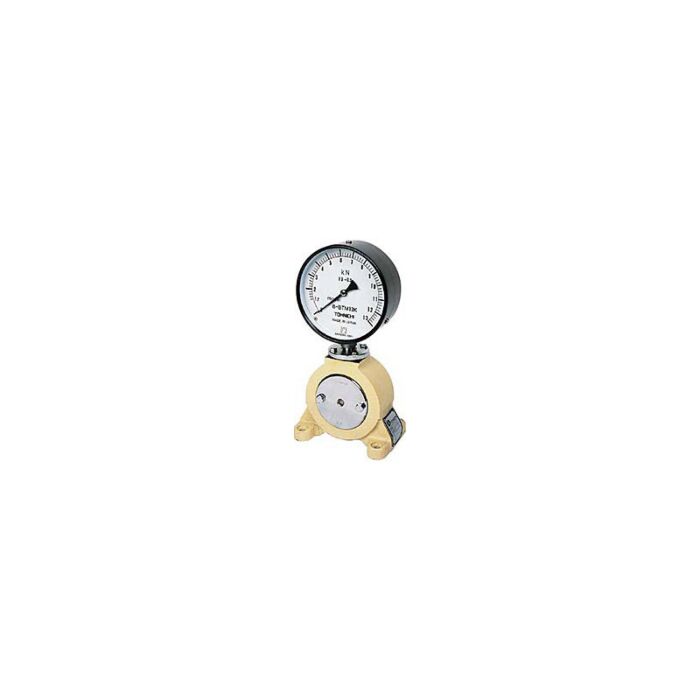

Tohnichi 4B-BTM

Bolt Tension Meter, 0.4-4, Std Bolt M10,12,14 29-32mm

Order #: 4B-BTM

Mfg #: 4B-BTM

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $2,872.24 Regular Price $3,122.00

Tohnichi 4B-BTM

Bolt Tension Meter, 0.4-4, Std Bolt M10,12,14 29-32mm

Order #: 4B-BTM

Mfg #: 4B-BTM

Special Price $2,872.24 Regular Price $3,122.00
Availability: Item ships in about Ships in 2-3 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Hydraulic bolt tension meter for torque coefficient evaluation or strength test of bolts.
  • Standard measuring device to test bolt and tightening characteristics.
  • With torque wrenches, bolt strength and torque coefficient of the bolt can be tested for variety of use.
  • Hydraulic mechanism is superior in durability, and the internal shock absorber allows for impact wrench use.
  • B-BTM provides one set of bush and plate as standard accessory which matches the standard bolt to be measured.
  • Compact and lightweight BTM400K can be carried to the worksite such as construction field to check the bolt tension of torsia high tension bolts.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Accuracy ±3%
S.I. MODEL BTM400K B-BTM13K B-BTM40K B-BTM130K B-BTM400K
AXIAL TENSTION RANGE
[kN]
MIN. - MAX. 50·400 1.2·13 4·40 12·130 40·400
GRAD. 5 0.2 0.5 2 5
METRIC MODEL 40BTM-2 1.3B-BTM 4B-BTM 13B-BTM 40B-BTM
AXIAL TENSTION RANGE
[ton]
MIN. - MAX. 5·40 0.12·1.3 0.4·4 1.2·13 4·40
GRAD. 0.5 0.02 0.05 0.2 0.5
AMERICAN MODEL 40BTM-2-A 1.3B-BTM-A 4B-BTM-A 13B-BTM-A 40B-BTM-A
AXIAL TENSTION RANGE
[lbf]
MIN. - MAX. 23000·90000 300·2800 1000·9000 3000·28000 10000·90000
GRAD. 1000 50 100 500 1000
APPLICABLE BOLT
[mm]
DIAMETER
(MINIMUM LENGTH)
HEX BOLT / TORSIA BOLT STANDARD BOLT
M16 M20 M22 M24 M5(20), M6(21)
M8(22.5)
M10(29), M12(31)
M14(32)
M16(41), M18(43)
M20(44), M24(47)
M27(72), M30(74)
M36(79), M42(84)
OPTIMUM UNDER HEAD LENGTH [mm] 65·70 70·75 75·80 80·85 -
DIMENSION
[mm]
OVERALL LENGTH(B) 261 106 135 188 280
OVERALL THICKNESS(E) 62 78 82 106 126
OVERALL HEIGHT(H) 289 217 241 287 367
BODY(b) - 62 78 90
BODY(c) - 86 110 156 240
BODY(h) - 10 12 16 25
BODY(d) - 6 7 12 14
BODY(H1) - 46 58 81 124
BODY(H2) - 119 131 154 192
WEIGHT [kg] 12.6 7.7 9.8 17.5 31
