Tohnichi 150CL-MH

Order # 150CL-MH

Mfg # 150CL-MH

800-828-1470

Save 6%

$196.00

$184.24

Overview
Technical Resources
Specifications

Home

Tohnichi 150CL-MH

Tohnichi 150CL-MH

Order # 150CL-MH | Mfg # 150CL-MH

New

Tohnichi 150CL-MH

Save 6%

$196.00

$184.24

Ships in 3-4 weeks

Log in for Member Pricing

Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

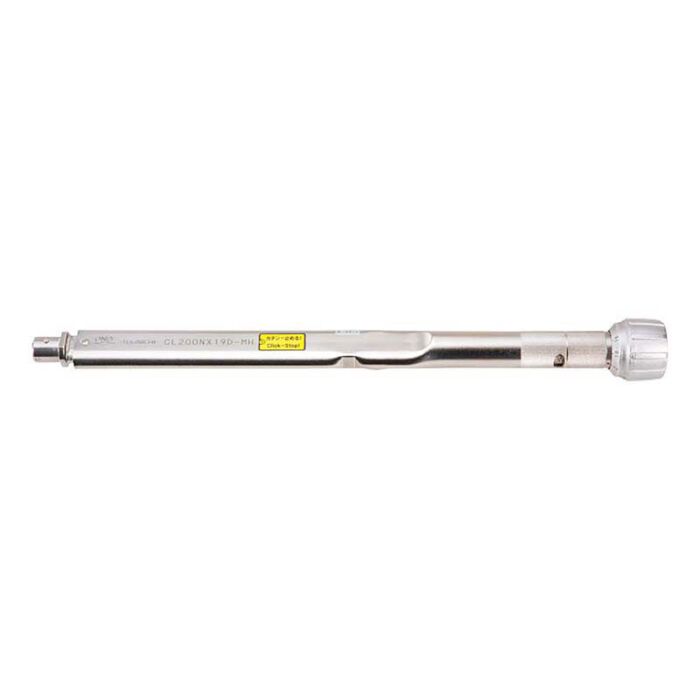

Knurled metal handle version of CL model.
Same features as QL-MH type but with interchangeable heads.
A clear "click" sound by internal toggle mechanism signals tightening completion upon reaching the set torque.
By exchanging heads, the wrench services a variety of applications from open end spanner, ring, ratchet, hex heads, and more, with a single wrench.
CL25Nx10D-MH, CL50Nx12D-MH, CL50Nx15D-MH, CL100Nx15D-MH and CL140Nx15D-MH adjustable torque wrenches can be used with interchangeable adjustable heads (AH) (monkey wrench type).

Technical Resources

Tohnichi CL-MH Operating Instruction

Specifications

Accuracy ±3%
S.I. MODEL						CL2NX8D-MH	CL5NX8D-MH	CL10NX8D-MH	CL15NX8D-MH	CL25NX10D-MH
TORQUE RANGE [N · m]	MIN. ~ MAX.					0.4~2	1~5	2~10	3~15	5~25
	GRAD.					0.02	0.05	0.1		0.25
METRIC MODEL						20CL-MH	50CL-MH	100CL-MH	150CL-MH	225CL-MH
TORQUE RANGE [Kgf · cm / Kgf · m]	MIN. ~ MAX.					kgf·cm 4~20	10~50	20~100	30~150	50-250
	GRAD.					kgf·cm 0.2	0.5	1		2.5
AMERICAN MODEL						CL15IX8D-MH	CL30IX8D-MH	CL50IX8D-MH	CL100IX10D-MH	Upon Request
TORQUE RANGE [lbf · in]	MIN. ~ MAX.					3~15	6~30	10~50	20~100	-
	GRAD.					0.1	0.2	0.5	1	-
APPLICABLE BOLT	COMMON STEEL					M4	M5,M6	(M7)	M8
	HIGH TENSION					(M3.5)	(M4.5)	M6	M6; M7	(M7)
MAX. HAND FORCE [N]						17.2	42.9	65.6	98.4	139
DIMENSION [mm]	EFFECTIVE LENGTH			L		116.5		152.5		180
	OVERALL LENGTH			L'		140		175		200
	HEAD			d3		8				10
	BODY			m		19
				n		9.2
				d		15
				D		25.5				26.5
WEIGHT [kg]						0.13		0.16		0.25

100-500

Accuracy ±3%
S.I. MODEL						CL50NX12D-MH	CL50NX15D-MH	CL100NX15D-MH	CL140NX15D-MH	CL200NX19D-MH	CL280NX22D-MH
TORQUE RANGE [N · m]	MIN. ~ MAX.					10~50		20~100	30~140	40~200	40~280
	GRAD.					0.5		1		2
METRIC MODEL						450CL-MH	500CL-MH	900CL-MH	1400CL-MH	1800CL-MH	2800CL-MH
TORQUE RANGE [Kgf · cm / Kgf · m]	MIN. ~ MAX.					200-1000	300-1400	400-2000	kgf·m 4-28
	GRAD.					5		10		20	kgf·m 0.2
AMERICAN MODEL						Upon Request
TORQUE RANGE [lbf · in]	MIN. ~ MAX.					-	-	-	-	-	-
	GRAD.					-	-	-	-	-	-
APPLICABLE BOLT	COMMON STEEL					M10		M12(M14)	M16	(M18)	M20
	HIGH TENSION					M8		M10	M12	(M14)	M16
MAX. HAND FORCE [N]						238	227	338	394	449	424
DIMENSION [mm]	EFFECTIVE LENGTH			L		210	220	295	355	445	660
	OVERALL LENGTH			L'		235		310	370	455	655
	HEAD			d3		12	15			19	22
	BODY			m		25.5		28		35
				n		11.2		12.2		15
				d		20		21.7		27.2
				D		36		37		46.5
WEIGHT [kg]						0.45		0.69	0.79	1.4	1.9
