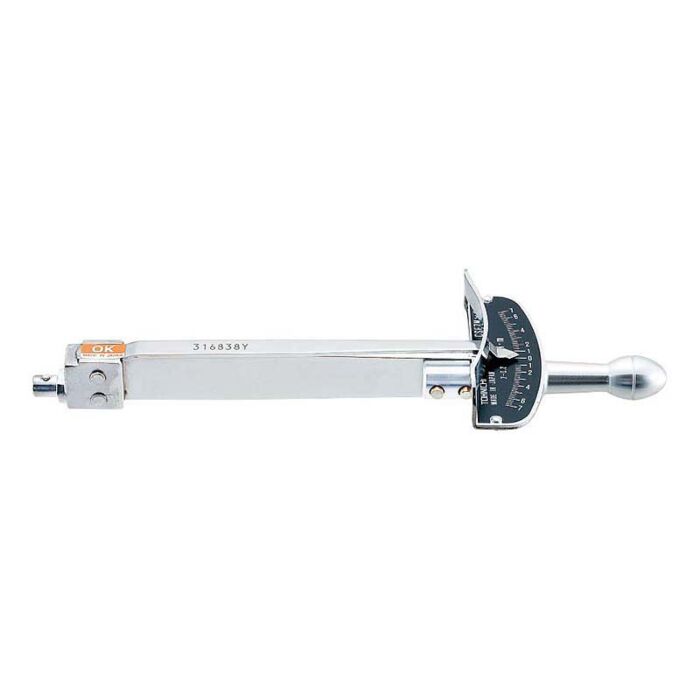

Tohnichi 140CSF

Interchang. Head/Beam Torque Wrench, 20-140, 5kgf.cm, 8D

Order #: 140CSF

Mfg #: 140CSF

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $178.48 Regular Price $194.00

Tohnichi 140CSF

Interchang. Head/Beam Torque Wrench, 20-140, 5kgf.cm, 8D

Order #: 140CSF

Mfg #: 140CSF

Special Price $178.48 Regular Price $194.00
Availability: Item ships in about Ships in 2-3 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Multi-purpose beam type torque wrench with interchangeable head type.
  • Interchangeable Head Torque Wrenches.
  • You can use approximately 300 kinds of Tohnichi interchangeable heads.
  • Scale registers torque bidirectionally, and can be used for re-tightening and loosening torque inspections.
  • The unique shape of the arm is designed to keep the internal force at stable level without any friction, which contributes to enhanced durability.
  • The CSF/CF model grip is shaped to conform to the hand in order to prevent slipping.
  • CSF7N~230N is available for memory pointer type as standard, other models upon request.
  • Applicable for international use including the EU region.
  • Compliant with calibration procedures of ISO 6789 Type I Class A.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Accuracy ±3%
S.I. MODEL CSF7NX8D CSF14NX8D CF25NX10D CF50NX12D CF100NX15D
TORQUE RANGE
[N · m]
MIN.~MAX. 1~7 2~14 5~25 10~50 10~100
GRAD. 0.2 0.5 1 2
METRIC MODEL 70CSF 140CSF 250CF 500CF 1000CF
TORQUE RANGE
[kgf · cm/kgf · m]
MIN.~MAX. Kgf · cm
10~70
20~140 50~250 100~500 100~1000
GRAD. Kgf · cm
2
5 10 20
AMERICAN MODEL 70CSF-A 140CSF-A 250CF-A 500CF-A 1000CF-A
TORQUE RANGE
[lbf · in/lbf · ft]
MIN.~MAX. lbf · in
10~60
20~120 40~220 80~420 lbf · ft
6~70
GRAD. lbf · in
2
5 10 20 lbf · ft
2
APPLICABLE BOLT
(REFERENCE)
STEEL M5,M6 (M7) M8 M10 M12(M14)
HIGH TENSION M4(M4.5) M5,M6 (M7) M8 M10
MAX. HAND FORCE [N] 30 55 80 135 230
DIMENSION
[mm]
EFFECTIVE LENGTH (L) 235 260 315 375 435
OVERALL LENGTH (L') 220 250 320 380 435
HEIGHT (M) 34 36 41 45 52
WIDTH (B) 74 84 90 104 110
HEAD (𝓁3) 9 11 13 16
HEAD (d3) 8 10 12 15
HEAD (d4) 2.5 3 4
BODY (h) 21.8 25.8 31.8 35.8 42.2
BODY (h1) 6 15 17 20
BODY (R)   70 90
BODY (m) Φ16 25 33
BODY (n)   20 26
WEIGHT [kg] 0.2 0.25 0.4 0.6 1.0
INTERCHANGEABLE HEAD (SH, RH, QH, HH) 8D (SH, SH-N, RH, QH, DH, HH) 10D (SH, RH, QH, RQH, DH, HH) 12D (SH, RH, QH, RQH, DH, HH) 15D
Accuracy ±3%
S.I. MODEL CF150NX19D CF230NX22D CF420NX22D CF850NX32D
TORQUE RANGE
[N · m]
MIN.~MAX. 20~150 30~230 70~420 100~850
GRAD. 5 10 20
METRIC MODEL 1500CF 2300CF 4200CF 8500CF
TORQUE RANGE
[kgf · cm/kgf · m]
MIN.~MAX. 200~1500 Kgf · m
3~23
7~42 42~85
GRAD. 50 Kgf · m
0.5
1 2
AMERICAN MODEL 1500CF-A 2300CF-A 4200CF-A 8500CF-A
TORQUE RANGE
[lbf · in/lbf · ft]
MIN.~MAX. 15~110 20~160 30~300 60~600
GRAD. 5 20
APPLICABLE BOLT
(REFERENCE)
STEEL M16 (M18) M24 M30
HIGH TENSION M12 (M14) M20 M24
MAX. HAND FORCE [N] 310 420 570 670
DIMENSION
[mm]
EFFECTIVE LENGTH (L) 490 555 750 1310
OVERALL LENGTH (L') 480 530 725 1260
HEIGHT (M) 53 56 60
WIDTH (B) 115 120 130 152
HEAD (𝓁3) 20 23 33
HEAD (d3) 19 22 32
HEAD (d4) 4 5 6
BODY (h) 44.6 50.8
BODY (h1) 21 22 24
BODY (R) 100 160
BODY (m) 38 48
BODY (n) 30 38
WEIGHT [kg] 1.3 1.6 3.1 7.1
INTERCHANGEABLE HEAD (SH,RH,QH,RQH,DH,HH) 19D (SH,RH,QH,RQH,DH,HH) 22D (SH,RH,QH,) 32D
