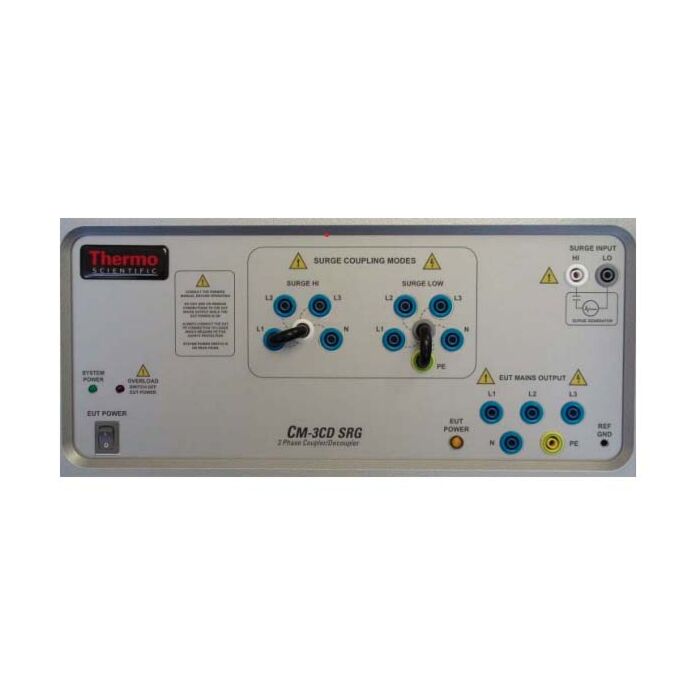

Rent Thermo Fisher Scientific CM 3CD-SRG 3-Phase Couple/Decoupler

Product Highlights

Keytek CM-3CD-SRG is a 3-phase surge coupler that is often used with the Keytek EMCPro Plus. This instrument is designed to allow users to efficiently set up and perform surge tests. The maximum surge voltage of the unit is 6.6 kV and the maximum surge current is 3.3 kA. With pre-programmed IEC test routines users are able to save time and achieve more accurate results.

Surge	Combination wave: 1.2/50 µs open-circuit voltage, 8/20 µs short-circuit current, per IEC 61000-4-5
Maximum Surge Voltage & Current	6.6 kV, 3.3 kA
AC Voltage	50 to 250 V, 50/60 Hz line to ground, 50 to 433 V line to line
DC Current	25 A up to 48 V 8 A up to 220 V 1.2 A up to 220 V 0.3 A up to 440 V
AC Current	32A/phase continuous
Input Current	1 A at 120 VAC; 0.5 A at 240 VAC
Power Requirements Input Voltage	90-250 VAC, 50/60 Hz

Semi-automatic operation when used with Thermo KeyTek’s CEMASTER or EMCPro simulators reduces the possibility of test sequence errors by prompting the user to make coupling mode selections
Pre-programmed IEC test routines save time and decrease the potential for human error
Ergonomic design provides maximum flexibility for operating from a table top or within a 19-inch rack.
Portable architecture with rugged handles and optional transit case enables users to transport the unit between departments or remote facilities
