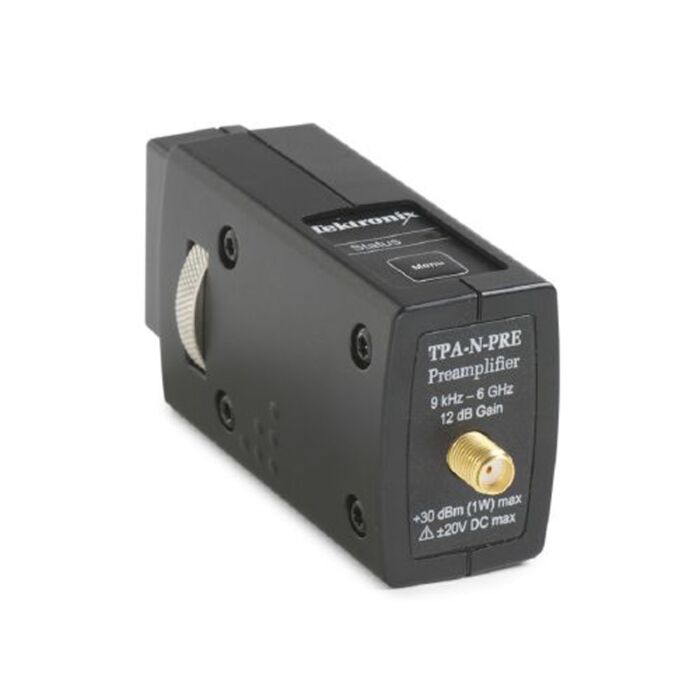

Tektronix TPA-N-PRE
External Preamp., TPA Connector , SMA Input
Order #: TPA-N-PRE
Mfg #: TPA-N-PRE
$3,990.00
Tektronix TPA-N-PRE
External Preamp., TPA Connector , SMA Input
Order #: TPA-N-PRE
Mfg #: TPA-N-PRE
$3,990.00
Availability: Ships in 3-4 weeks
Product Highlights
Features and Benefits
- 9 kHz - 6 GHz frequency range
- 12 dB gain (nominal)
- 10 dB DANL improvement
Applications
- Measurement of low-power signals
TPA-N-PRE Preamplifier
The TPA-N-PRE preamplifier accessory for the MDO4000 and MDO3000 Series Mixed Domain Oscilloscopes provides 12 dB nominal gain, further lowering the already low noise floor in the MDO4000 and MDO3000 Series. This allows you to pull very small signals out of the noise in low-amplitude signal applications. For example, in the following screenshot we are measuring a noise floor of -114 dBm (-154 dBm/Hz) without the TPA-N-PRE preamplifier. It appears that there is only noise present.
