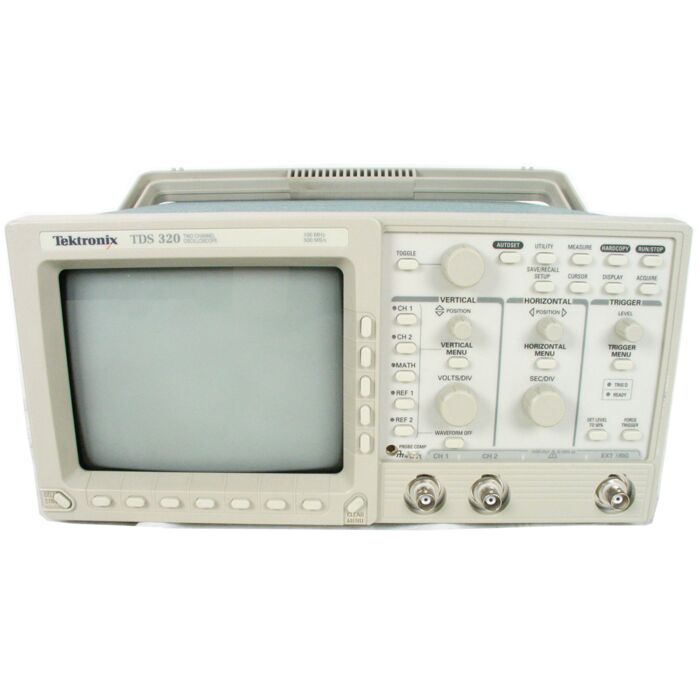

Tektronix TDS320 FOR RENT

Tektronix TDS320 Highlights

• Signal Acquisition System
• Bandwidth: 100 MHz
• Sample Rate: 500 MS/s on each channel
• Channels: two identical channels, each with invert function
• Sensitivity: 2 mV to 10 V/div
• Vertical Resolution: 8 bits (256 levels over 10.24 vertical divisions)
• Time Base System (Main and Delayed)
• Time/Division Range: 5 ns - 5 s/div
• Record Length: 1000 sample points per channe
• Triggering System (Main Only)
• Triggering Types: Edge, Video
• Automatic Measurements
• Option 14 (I/O Interface): Computer Interface and Hardcopy Capability
• GPIB (IEEE-488.2) Programmability
• RS-232 Interface Programmability
• Video Output
• Hardcopy Port - Centronics-type parallel or RS-232
• Graphics Interface File Formats - Interleaf (.img), TIFF, PCX (PC Paintbrush), BMP (Microsoft Windows), and Encapsulated Postscript (EPS)
• Printer Formats - ThinkJet, DeskJet, LaserJet, Epson (9 & 24 Pin), Seiko DPU 411/II, DPU 412
• DC power provided for Seiko printers
