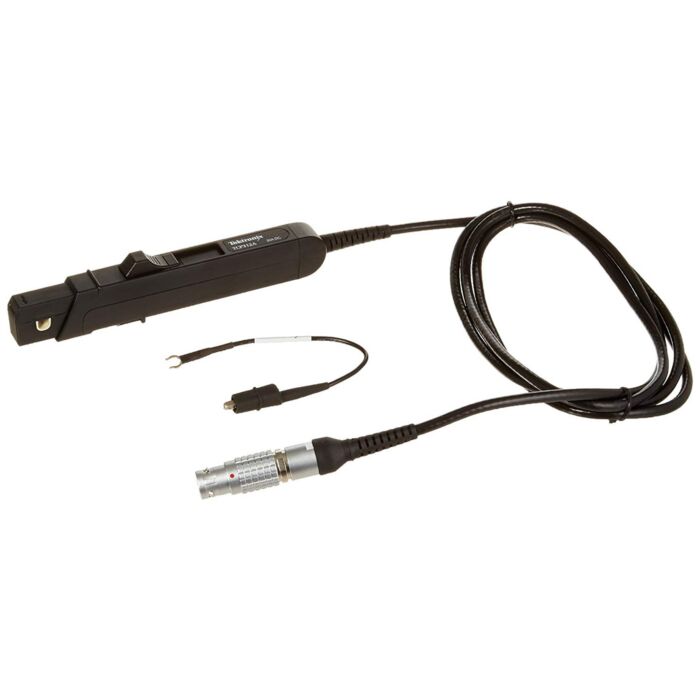

Tektronix TCP312A Probe, AC/DC current, DC to 100MHz, 30A DC

Product Highlights

The TCP312A is an AC/DC Current Probe supports DC - 100MHz, 30A DC. The TCPA300 amplifier, when used with TCP312A probes, provides a wide range of current measurement capability and spans the gap between low-level milliamp measurements to very high current levels. Status indicators to provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50Ω, non-compatible probe type. The TCP300 series AC/DC current measurement family is a highly advanced current measurement system for today's current measurement needs. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (with TCA-BNC) or TekVPI (with TPA-BNC) interfaces, current measurements and calculations are simple and easy. 1 Requires a TDS TEKSCOPE oscilloscope or a TekConnect oscilloscope with TCA-BNC adapter Note: requires TCPA300 amplifier.

• Automatic scaling and units
• AC/DC input coupling
• Low insertion impedance reduces device under test loading
• Split-core construction allows easy circuit connection
• Status indicators to provide visual operating status and notification of potential error conditions
• Low DC drift and noise allows improved low-level current measurements
• 3rd Party safety certification
