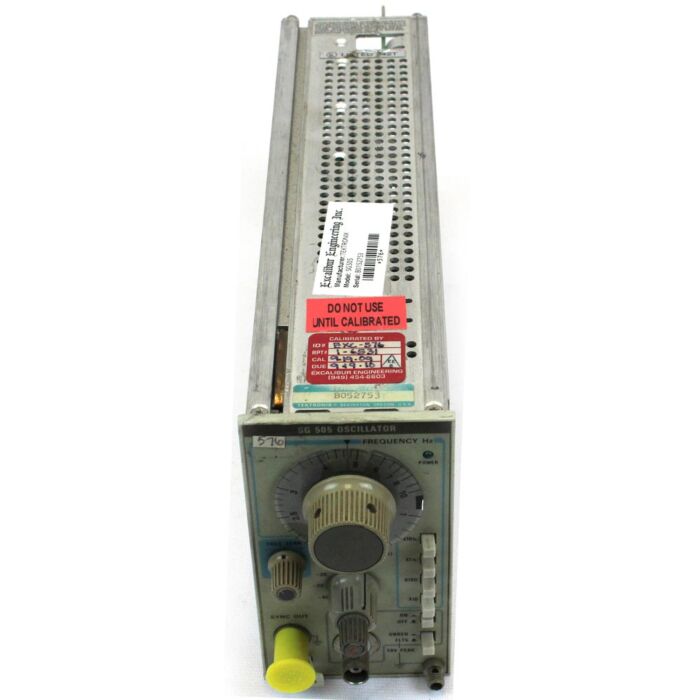

Tektronix SG505 Used for Sale

OSCILLATOR, 10 Hz-100Khz, plug-in

Order #: SG505-USED

Mfg #: SG505

Questions about availability or need help? Contact Us:

(800) 633-0561 sales@transcat.com

$499.00

Qty

Tektronix SG505 Used for Sale

OSCILLATOR, 10 Hz-100Khz, plug-in

Order #: SG505-USED

Mfg #: SG505

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$499.00

Transcat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability: Ships in 3-4 weeks

Ships Free Over $100

Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Overview

Product Highlights

Frequency range: 10 Hz to 100 kHz nom. (typ. 9 Hz to 110 kHz) in four overlapping ranges
Frequency accuracy: 3% of dial reading
Output level: +10 dBm to -60 dBm into 600 Ω in eight 10 dB steps, plus variable control +2.2 dB to -10 dB from calibrated position
Output impedance: 600 Ω
Distortion: < 0.0008% (-102 dB) from 20 Hz to 20 kHz
Sync output: 200 mVRMS sine to 20 kHz, at least 120 mV @ 100 kHz; 1 kΩ source impedance
Topology: State-variable oscillator with N-FET (151-1021-00) based AGC. Range switches change capacitors and AGC time constants, main dial changes integrator resistor. Oscillator built from NE5534 amplifiers.
