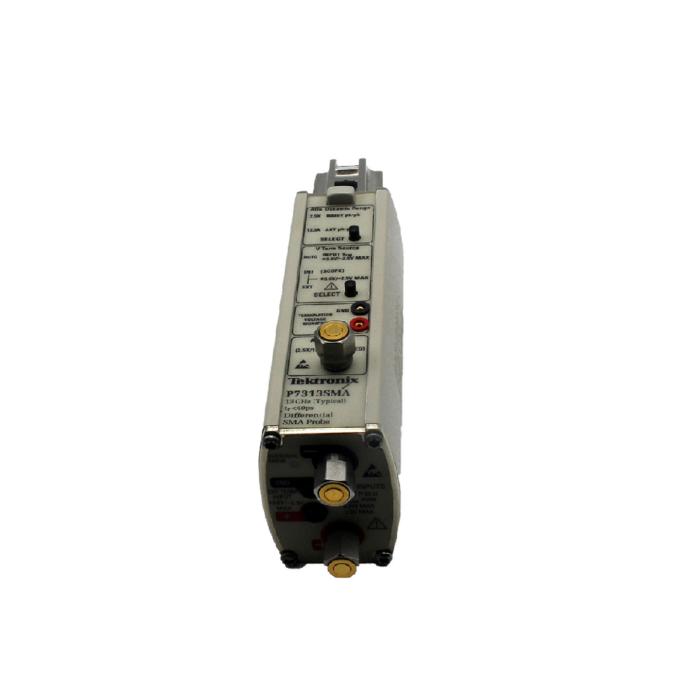

Used Tektronix P7313SMA 13GHz Differential SMA Probe

Product Highlights

The Tektronix P7313SMA is a differential input probe for Tektronix real-time oscilloscopes. The P7313SMA provides a high fidelity differential input connection with low noise. Created for the purpose of measuring differential signals in 50 O signaling environments, the P7313SMA provides its user with the ability to measure high-speed differential signals on each channel of a multiple-channel oscilloscope.

• >13.0 GHz Bandwidth (Typical)
• 50Ohm Termination Network, Differential SMA Inputs
• Industry Leading Differential Return Loss and VSWR
• High Bandwidth Differential Amplifier with excellent CMRR
• Internal Termination Voltage Generator controlled by Internal by Oscilloscope
• External Source, or Automatically by the probe
• Phase Matched SMA Cables (38 inch length <1ps skew) with Cable Loss Compensation
• Switchable Gain for extended dynamic range
• Auxiliary (inverted) output for use with Spectrum Analyzers, Network Analyzers, or as a clock recovery trigger source
• TekConnect Interface
