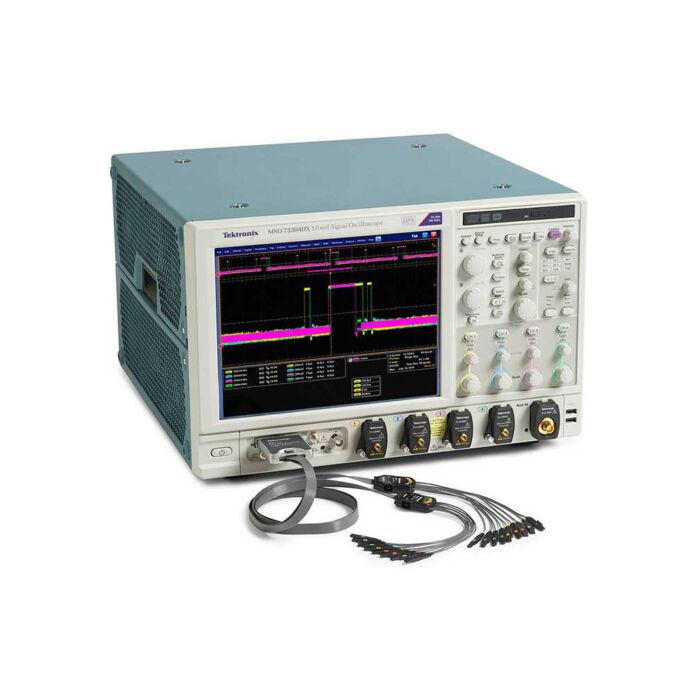

Tektronix MSO72304DX USED FOR SALE
Order #: MSO72304DX-USED
Mfg #: MSO72304DX-USED
Transcat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.
Only need this item for a short time?
- Analog Bandwidth: 23 GHz
- Sample Rate: 50 GS/s - 100 GS/s
- Record Length: 62.5M points - 1G points
- Analog Channels: 4
- Digital Channels: 16
The MSO/DPO70000 is one of the most advanced oscilloscopes in its class—enabling today's engineer to see signals better with minimal noise, debug signal anomalies faster and utilize measurement and analysis tools for automated compliance testing and other verifications. In addition, the MSO/DPO70000 is perfect for analog/digital design and debug, data communications and high-speed serial communications. See how you can use the MSO/DPO70000 for your next project to find and analyze a wide range of mixed-signal anomalies.
See your real signal
Industry-leading signal fidelity, minimum noise and highest effective number of bits (ENOB) provides confidence you are seeing your real signal and measuring it precisely. High signal-to-noise ratio and low internal noise floor enable you to perform precise characterization of your designs.
- Bandwidth enhancement eliminates imperfections in frequency response to the probe tip
- Low jitter noise floor and high vertical accuracy provide additional margin in your measurements

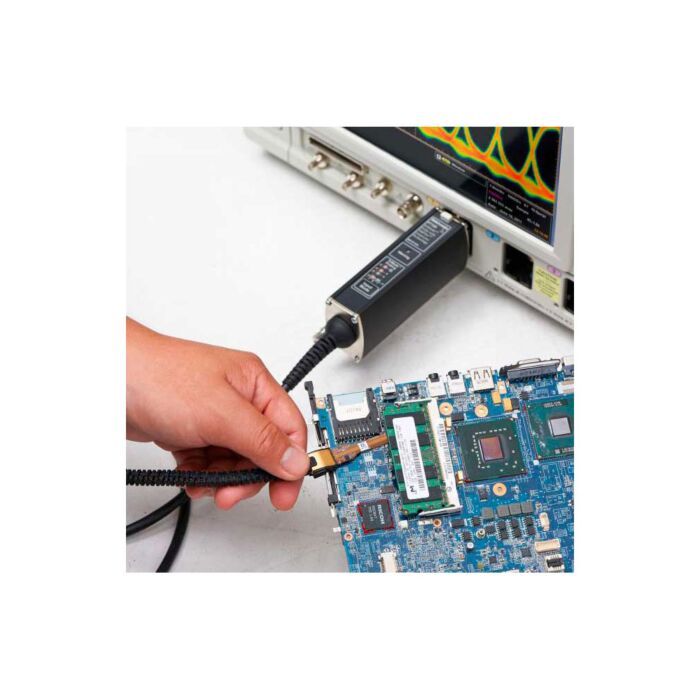

- Wide range of probes simplify complex measurement setups and maintain signal integrity
- Compare optical and electrical signal timing on one screen with calibrated optical probe
Reduce debug time
From first power-on through operational checks, MSO/DPO70000 Series provides features you need to find problems fast. An industry-leading waveform capture rate and Pinpoint® triggering make you efficient at tracking down and capturing intermittent faults.
- FastAcq keeps up with your changing signals to show true system behavior including elusive faults
- Quickly find invalid state or bus sequences with parallel/serial bus decoding/triggering
- iCapture™ easily verifies analog characteristics of digital signals without changing connections
- Visual Trigger saves hours of capturing and manually searching through acquisitions to find critical events and complete your debug efforts
Measurement and analysis tools that keep you on track
Application support packages provide automated compliance testing, insightful debugging tools and the extensive signal connection options you need to verify and certify your latest design.
- DPOJET: the most comprehensive, flexible measurement tool available
- SDLA: the most powerful, complete tool for analyzing and compensating for signal affects in serial data links
- Broadest range of standards support, including I2C, SPI, RS-232, FlexRay, MIPI, DisplayPort, HDMI, PAM4, PCIe Gen3/Gen4, SATA/SAS, USB3.1, Type-C, 10/100BaseT to 10G/100G Ethernet
- Powerful debugging tools to quickly uncover/fix design challenges
- Optical measurements, such as Extinction Ratio (ER), Average Optical Power (AOP), Optical Modulation Amplitude (OMA), Optical High/Optical Low value - compatible with DPO7OE1/DPO7OE2 optical probe
