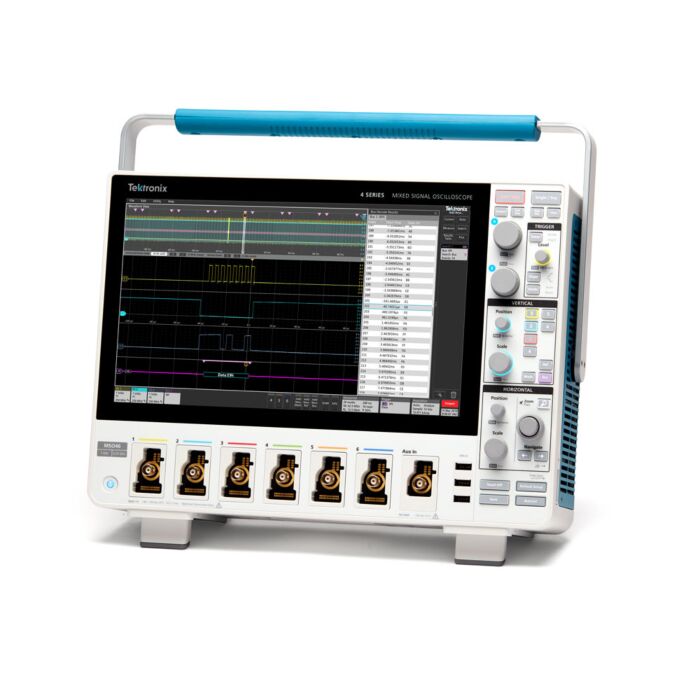

Tektronix MSO44 4-BW-1000 4 Series MSO Oscilloscope, 1 GHz, 4 FlexChannels
4 Series MSO Oscilloscope, 1 GHz, 4 FlexChannels

Order #: MSO44 4-BW-1000

Mfg #: MSO44 4-BW-1000

Questions about availability or need help? Contact Us:

(800) 633-0561
$23,300.00

Tektronix MSO44 4-BW-1000 4 Series MSO Oscilloscope, 1 GHz, 4 FlexChannels

4 Series MSO Oscilloscope, 1 GHz, 4 FlexChannels

Order #: MSO44 4-BW-1000

Mfg #: MSO44 4-BW-1000

$23,300.00

Limited quantities. Pricing valid for quantities in stock only.

Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • The largest 13.3-inch HD (1920x1080) capacitive touch display in its class
  • Up to 6 FlexChannel® inputs
  • 12-bit vertical resolution; up to 16-bits in High Res mode
  • Optional built-in function generator
  • Support for over 20 serial bus protocols

The 4 Series MSO offers better visibility into complex systems by offering four and six channel models with a 13.3-inch high-definition (1,920 x 1,080) display. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, require the observation of more than four analog signals to verify and characterize device performance, and to debug challenging system issues.

Most engineers can recall situations in which they were debugging a particularly difficult problem and wanted greater system visibility and context, but the scope they were using was limited to two or four analog channels. Using a second scope involves significant effort to align trigger points, difficulty in determining timing relationships across the two displays, and documentation challenges.

And while you might assume that a six channel scope would cost 50% more than a four-channel scope, you'll be pleasantly surprised to find that six channel models are only ~20% more than four channel models. The additional analog channels can pay for themselves quickly by enabling you to keep current and future projects on schedule.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.

Key Performance Specifications

  • Input channels
    • 4 FlexChannel inputs
    • Each FlexChannel provides: One analog signal that can be displayed as a waveform view, a spectrum view 1, or both simultaneously; Eight digital logic inputs with TLP058 logic probe
  • Bandwidth (all analog channels)
    • 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz (upgradable)
  • Sample rate (all analog / digital channels)
    • Real-time: 6.25 GS/s
  • Record length (all analog / digital channels)
    • 31.25 Mpoints standard (62.5 Mpoints optional upgrade)
  • Waveform capture rate
    • >500,000 waveforms/s
  • Vertical resolution
    • 12-bit ADC
    • Up to 16-bits in High Res mode
  • Standard trigger types
    • Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger
    • Auxiliary Trigger 300 VRMS (Edge Trigger only)
  • Standard analysis
    • Cursors: Waveform, V Bars, H Bars, V&H Bars
    • Measurements: 36
    • FastFrameTM: Segmented memory acquisition mode with maximum trigger rate waveforms per second
    • Plots: Time Trend, Histogram and Spectrum
    • Math: Basic waveform arithmetic, FFT, and advanced equation editor
    • Search: Search on any trigger criteria
  • Optional analysis
    • Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
    • Power Measurements and Analysis
  • Optional serial bus trigger, decode and analysis
    • I2C, SPI, I3C, RS-232/422/485/UART, SPMI, CAN, CAN FD, LIN, FlexRay, SENT, USB 2.0, Ethernet, I2S, LJ, RJ, TDM, MIL-STD-1553, ARINC 429
  • Arbitrary/Function Generator
    • 50 MHz waveform generation
    • Waveform Types: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random, Noise, Haversine, Cardiac
  • Digital voltmeter
    • 4-digit AC RMS, DC, and DC+AC RMS voltage measurements
  • Trigger frequency counter
    • 8-digit
  • Display
    • 13.3-inch (338 mm) TFT color
    • High Definition (1,920 x 1,080) resolution
    • Capacitive (multi-touch) touchscreen
  • Connectivity
    • USB 2.0 Host, USB 2.0 Device (5 ports); LAN (10/100/1000 Base-T Ethernet); HDMI
  • Warranty
    • 3 years standard
  • Dimensions
    • 9.8 in (249 mm) H x 17.7 in (450 mm) W x 6.1 in (155 mm) D
