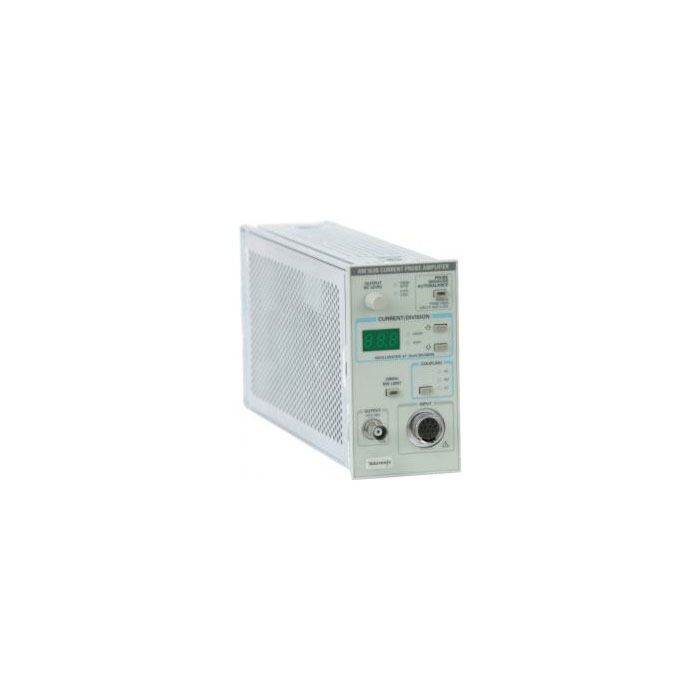

Tektronix AM503B for Rent, AC/DC Manual Current Probe Amplifier

Order # AM503B-RENT2 | Mfg # AM503B

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Tektronix AM503B Highlights

The AM503B current probe amplifier allows display of current on any oscilloscope having 10 mV/div sensitivity, 50 ohm or 1 megohm input, and at least 100 MHz bandwidth (400 MHz for A6312). It is compatible with A6302, A6302XL, A6303, A6303XL, A6304XL, A6312, P6302, or P6303 current probes. It requires a TM500 or TM5000 series mainframe for operation.

  • Allows for current display on any oscilloscope
  • Maximum input current: 20A for 6302 & A6312; 100A for 6303; 500A for A6304XL
  • Bandwidth: >50 MHz 6302; >15 MHz 6303; >2 MHz A6304XL; >100 MHz A6312
  • Push button auto balance/degauss
  • LED current/division display
  • Weight: 5 lb; Size: single width module
  • Plugs into TM500/5000 Power Modules. For Current Display on an oscilloscope. Bandwidth up to 100MHz, current up to 500A
