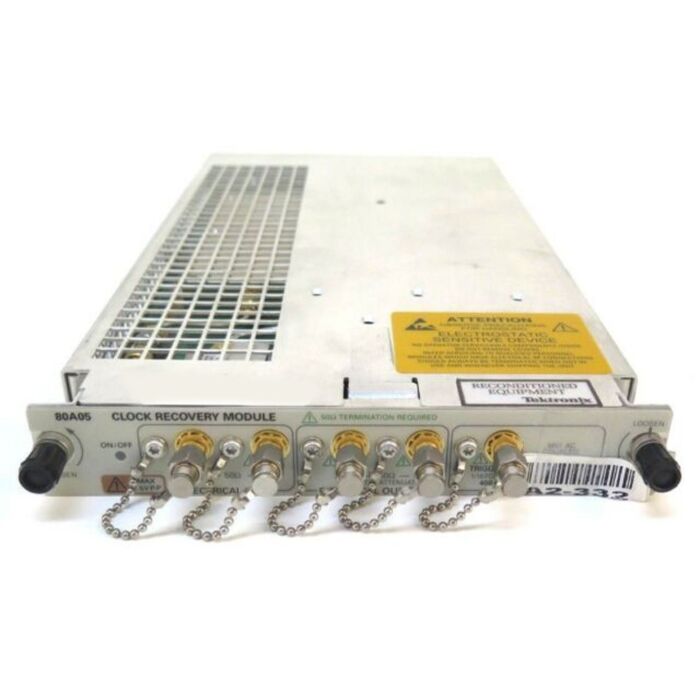

Tektronix 80A05 Electrical Clock Recovery Module, Used for Sale

Product Highlights

The 80A05 Electrical Clock Recovery Module enables clock recovery for electrical signals. Additionally, the 80A05 provides internal routing of the recovered clock for triggering of the 8200.

The 80A05 provides high level of integration and the best sensitivity available, and is the optimal solution for testing of optical transmitter components and electrical components of optical systems. The 80A05 PLL loop bandwidth selection is automatic with no interaction, leading to easy setup and operation.

Features & Benefits

• Electrical Clock Recovery for:
• Enumerated Bit Rates: 50 Mb/s to 3.188 Gb/s (80A05)
• Provides fully integrated 80C12 Electrical Clock Recovery Support
• Clean 50 Ω Path for the Best Signal Acquisition Fidelity
• Option 10G adds support for user selectable rates to 12.60 Gb/s

Applications

• Serial Data Link and Device Characterization for Computer, Communications, and Consumer Applications
• Compliance Testing of Electrical Signaling
• High-speed Optical Communications Testing
• Jitter, Noise, BER, and Signal Impairment Analysis
