Tektronix 7B85 for Rent, Delaying Time Base

Tektronix 7B85 Highlights

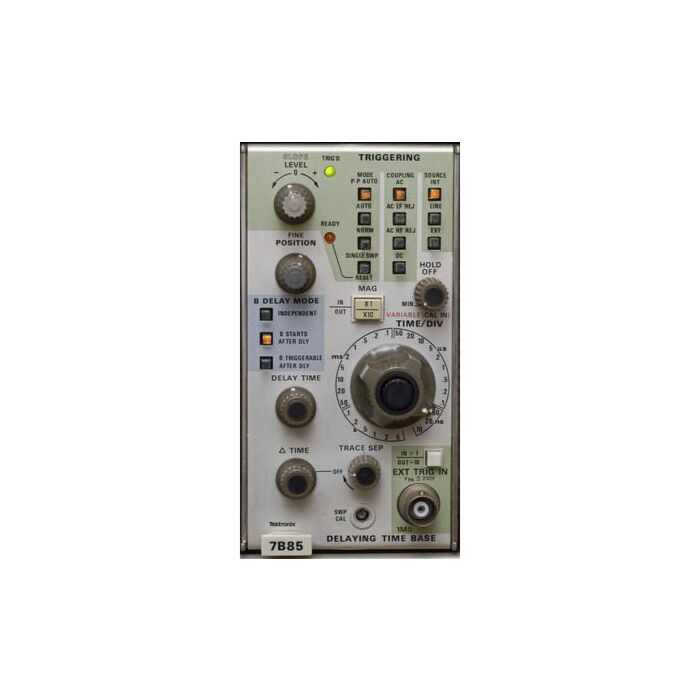

The Tektronix 7B85 is a 400 MHz delaying timebase for 7000-series scopes with digital delay and delta time read-out capability, typically used in the 7800 Series, e.g. 7844. It does not support X-Y mode.

The delay function differentiates the 7B85 from the otherwise similar 7B80. The 7B87 is also similar to the 7B85 but provides an acquisition clock for a digital storage mainframe instead of a delay.

• Sweep: 5 s/Div to 10 ns/Div in 1-2-5 sequence, _10 magnifier down to 1 ns/Div, variable to _2.5
• Triggering: to 400 MHz
• Digital read-out of delay and delta times
• Variable Trigger Holdoff
• Peak-to-peak Auto Triggering
