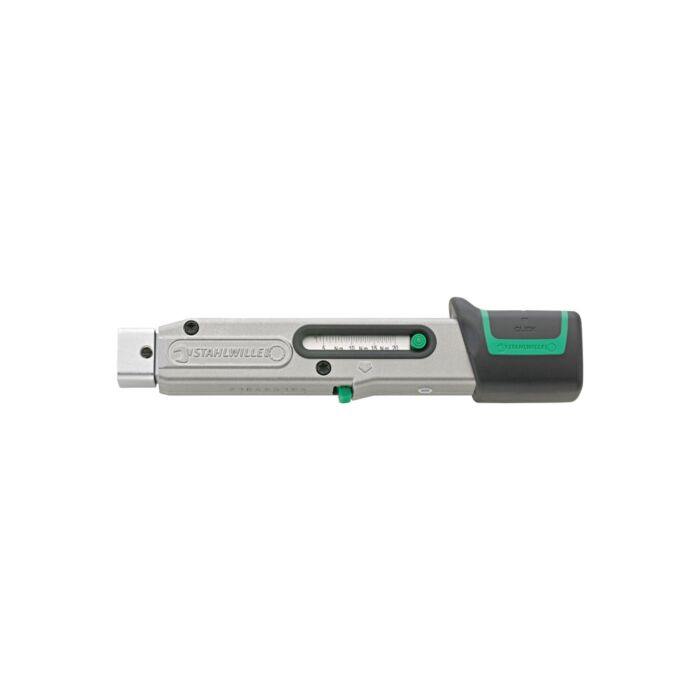

Stahlwille 730A/4 QUICK
Torque Wrench w/Cut-out

Order #: 50584004

Mfg #: 50584004

Questions about availability or need help? Contact Us:

(800) 633-0561
$623.00

Stahlwille 730A/4 QUICK

Torque Wrench w/Cut-out

Order #: 50584004

Mfg #: 50584004

$623.00
Availability: Ships in 3-4 weeks

Product Highlights

  • Click-type
  • Mount for interchangeable insert/shell tools
  • QuickRelease safety lock (sizes 5-65)
  • Rapid setting thanks to easy-action locking lever in the handle (sizes 5-65)
  • Ergonomically designed, non-slip adjuster with a thumb recess
  • Magnifying glass integrated in the display window 1 Optimised convex handle for strain-free working
  • Dual stop signal
  • Twin scales N*m/ft*lb and N*m/in*lb (sizes 5-80)
  • The measuring element is only under load while force is being applied, no need for manual reset to zero
  • Can be applied for either clockwise or anticlockwise tightening by turning the inserts over
  • Any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw
  • Does not act on the trigger mechanism and cannot cause damage to it
  • Calibration using perfectControl calibrating unit No 7794 or calibration system No 7706
  • Adjustment without disassembly
  • Display deviation value ± 4%
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Specifications
Measuring range [1]70-350 in*lb
Scale division [E1]10 in*lb
Size tool mount (female square)9x12 mm
LF200.8 mm
SF17.5 mm
Weight395 g
L223 mm
H23.6 mm
b27.5 mm
Sizea/4
Weight (gross)0.000
Item No.50584004
