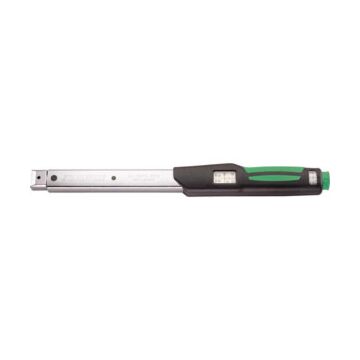

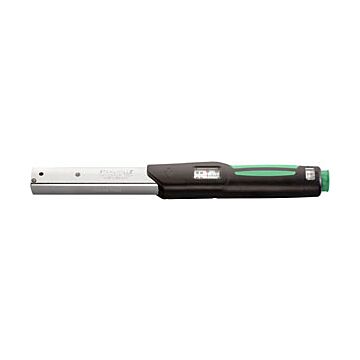

Stahlwille 730N/10

Product Highlights

• Registered design, clicking torque wrench with mount for interchangeable insert tools, rapid, accurate setting using QuickSelect quick-action adjuster, with QuickRelease safety lock, double stop signals, very clear twin scales with colour coded N m/ft.lb and ft.lb/inch.lb markings and long-term repeated accuracy
• The measuring element is only under load while force is being applied, no need for manual reset to zero
• All the sensitive components are protected by the sturdy housing
• The 2-component handle with its ergonomically designed green softer layers is resistant to oils, grease, fuels, brake fluids and Skydrol
• Any force applied to the tool after the "click" or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it
• The swap-over inserts can also be used to apply torque in an anticlockwise direction
• Easily adjustable without disassembly, e.g. using tester No 7707 W or calibration system No 7706
• Deviation of indication ± 3%. With certificate
• Scale Range 20-100 N m
• Scale Range 15-75 ft.lb
• Scale Division 10 N m
• Scale Division 2,5 ft.lb
• Fine scale Scale Division 0,5 N m
• Size of Insert Tool Carrier in mm (MANOSKOP) (Inside Square) mm 9 x 12
• b mm 28
• h mm 23
• L mm 386
• LF mm 336
• SF mm 17,5
• Weight g 988
