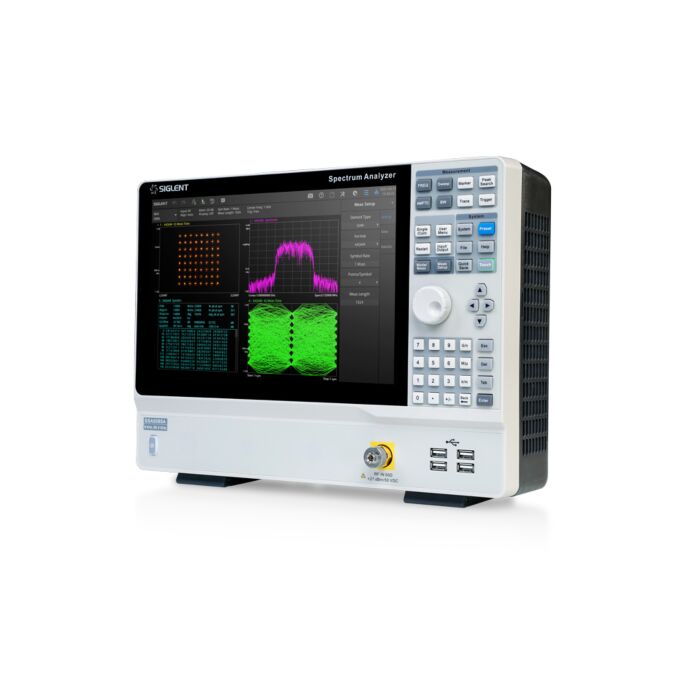

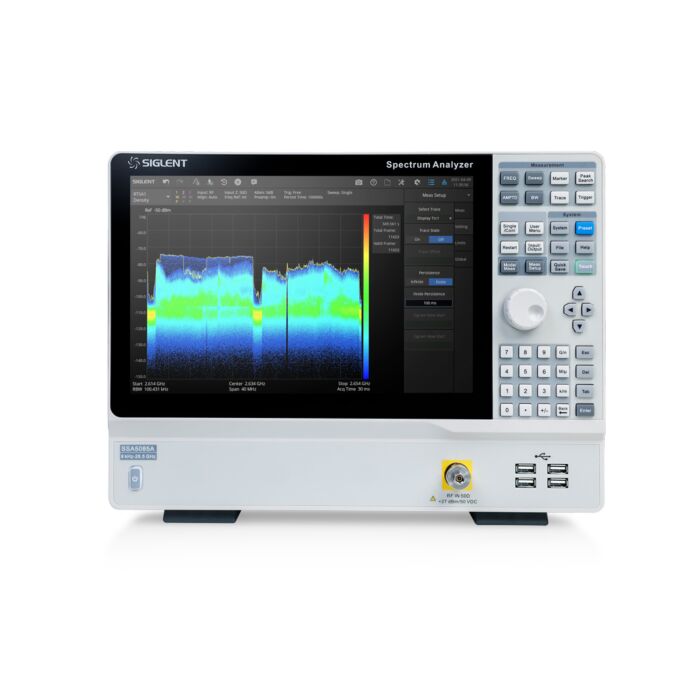

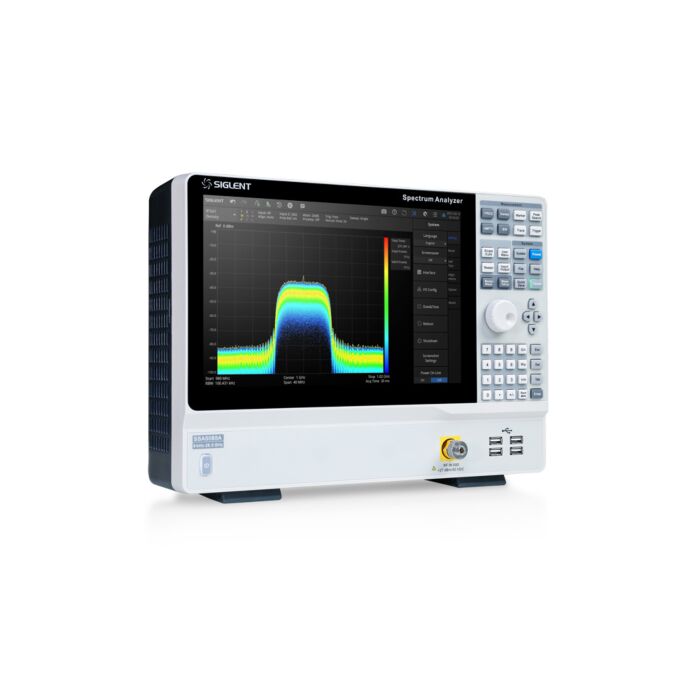

Siglent SSA5085A

Order # SSA5085A | Mfg # SSA5085A
$25,162.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With a capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, spectrum interference.

Applications include broadcast monitoring/evaluation, cellular site, IoT, wlan and bluetooth surveying, research and development, education, production, and maintenance.

Features and Benefits

  • Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz/26.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
  • 25 MHz/40 MHz Analysis Bandwidth
  • 100% POI 7.20 ?s, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT
  • Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
  • Analog Modulation Analysis and Vector Digital Modulation Analysis
  • 12.1 inch Multi-Touch Screen, HDMI output
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Technical Resources

Siglent SSA5085A Accessories

checkbox-empty
Select
Siglent SSA5000-F5 SSA5083A upgrade to SSA5085A (software license)
checkbox-empty
Select
Siglent SSA5000-B40 40 MHz analysis bandwidth (software license)
checkbox-empty
Select
Siglent SSA5000-RTA1 Real-Time Spectrum Analysis (software license)
checkbox-empty
Select
Siglent SSA5000-AMK Advanced Measurement Kit (software license)
checkbox-empty
Select
Siglent SSA5000-AMA Analog Modulation Analysis: AM, FM, PM (software license)
checkbox-empty
Select
Siglent SSA5000-DMA Digital Modulation Analysis: ASK, FSK, MSK, PSK, QAM
checkbox-empty
Select
Siglent SSA5000-P3 Pre-amplifier, 9 kHz - 13.6 GHz (software license)
checkbox-empty
Select
Siglent SSA5000-P5 Pre-amplifier, 9 kHz - 26.5 GHz (software license)
checkbox-empty
Select
Siglent SSA5000-EMI EMI measurement mode (software license)
checkbox-empty
Select
Siglent 10M-OCXO-L Precision Frequency Reference, high accuracy clock source
checkbox-empty
Select
Siglent SMA-SMA-18L SMA(M)-SMA(M) cable, 18 GHz
checkbox-empty
Select
Siglent SMA-SMA-26L SMA(M)-SMA(M) cable, 26 GHz
checkbox-empty
Select
Siglent SMAF-SMA-26L SMA(F)-SMA(M) cable, 26 GHz
