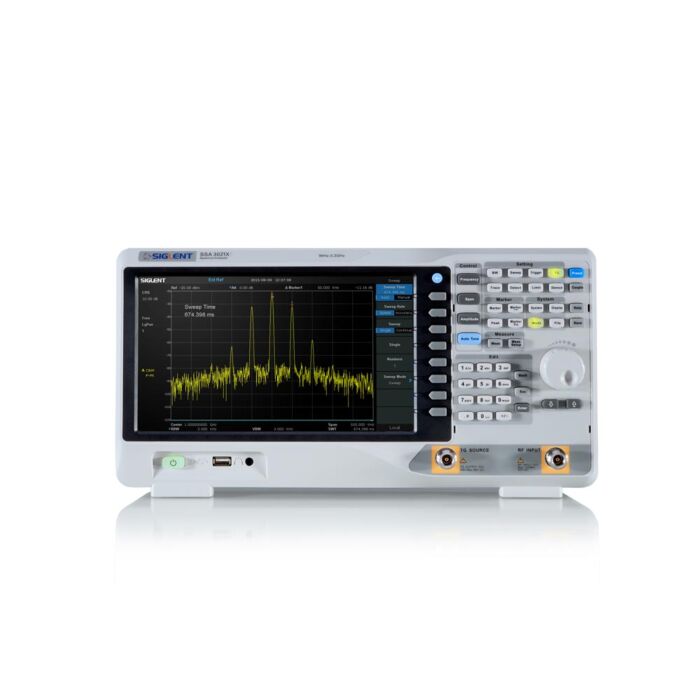

Siglent SSA3021X

Product Highlights

• All-Digital IF Technology
• Frequency Range from 9 kHz up to 2.1 GHz
• -161 dBm/Hz Displayed Average Noise Level (Typ.)
• -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
• Total Amplitude Accuracy 0.7 dB
• 10 Hz Minimum Resolution Bandwidth (RBW)
• Standard Preamplifier
• Up to 3.2 GHz Tracking Generator Kit (Option)
• Reflection Measurement Kit (Option)
• Advanced Measurement Kit (Option)
• EMI Pre-compliance Measurements Kit (Option)
• 10.1 lnch WVGA (1024x600?Display

*New SSA3000X instruments feature approximately 40 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.

Each Unit Includes

• Quick Start
• Product Certification
• Power Cord
• USB Cable
• CD (Including Quick Start, Data Sheet and Application Software)
• Calibration Certificate
