Siglent SRF5030
Order #: SRF5030
Mfg #: SRF5030T

Only need this item for a short time? Learn about rentals
Product Highlights

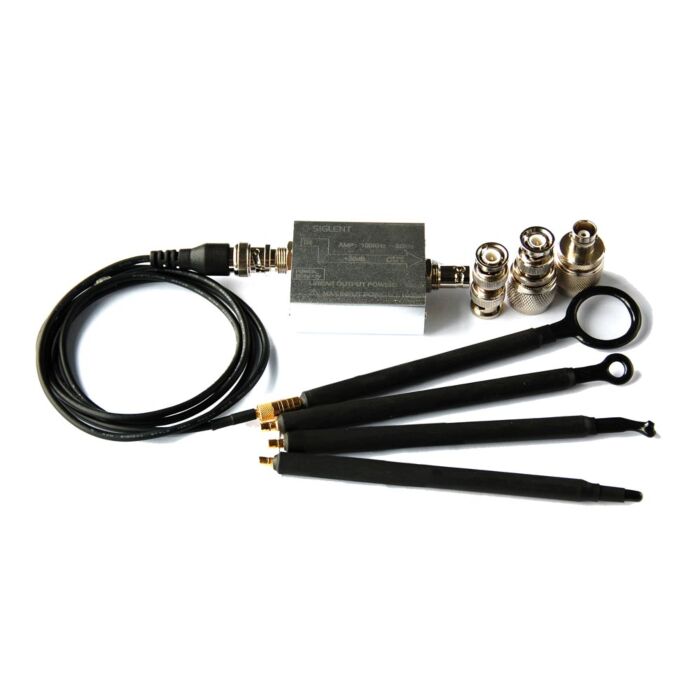

Siglent near-field probe SRF5030 kit is mainly used for measuring the electromagnetic field of electronic products to achieve interference source rapid bit . It has a variety of shapes of the probe, a wide frequency range, can complete a variety of electromagnetic field test tasks. Besides it includes four near-field probe and supports the use of an amplifier, and the amplifier gain is about 20dB, it can improve the system test sensitivity!
It’s applied to set the device or the magnetic field direction and intensity of the surface; chassis, cables, PCB modules, magnetic leak case. Even we can know accurately the IC pins and specific alignment. Thereby we can determine the cause of interference, improve the level of product design, shorten the product development cycle.
- SRF503-1
- Magnetic near-field probe, the magnetic field can be checked within 10 cm
- Mainly used for chassis leak test
- Frequency range: 30 MHz ~ 3 GHz
- Resolution: 25 mm or so
- SRF503-2
- Magnetic near-field probe, the magnetic field can be checked within 3 cm
- Frequency range: 30 MHz ~ 3 GHz
- Resolution: 10 mm or so
- SRF503-3
- Magnetic near-field probe
- Mainly used for cable electromagnetic leak test
- Frequency range: 30 MHz ~ 2 GHz
- Resolution: 5 mm or so
- SRF503-4
- Magnetic near-field probe
- Can detect the electromagnetic field emitted in the vertical direction
- Mainly used for measuring electromagnetic fields produced by PCB layout
- Frequency range: 30 MHz ~ 3 GHz
- Resolution: 2 mm or so
- Preamplifier
- mainly amplifies the weak signal
- greatly improve the sensitivity of the test system
- Frequency range: 100KHz ~ 2GHz
- Typical Gain: 19.5dB
- Maximum linear output power: 9dBm
- Noise System: 5.3dB
- Maximum input power: 10dBm
- Operating voltage: DC 9 ~ 12V
