Siglent SPL2016

Logic Probe,16-channel,500MSa/s

Order #: SPL2016

Mfg #: SPL2016

New

$546.00

Availability: Ships in 3-4 weeks

Tariff fees or manufacture imposed surcharges may be applicable.

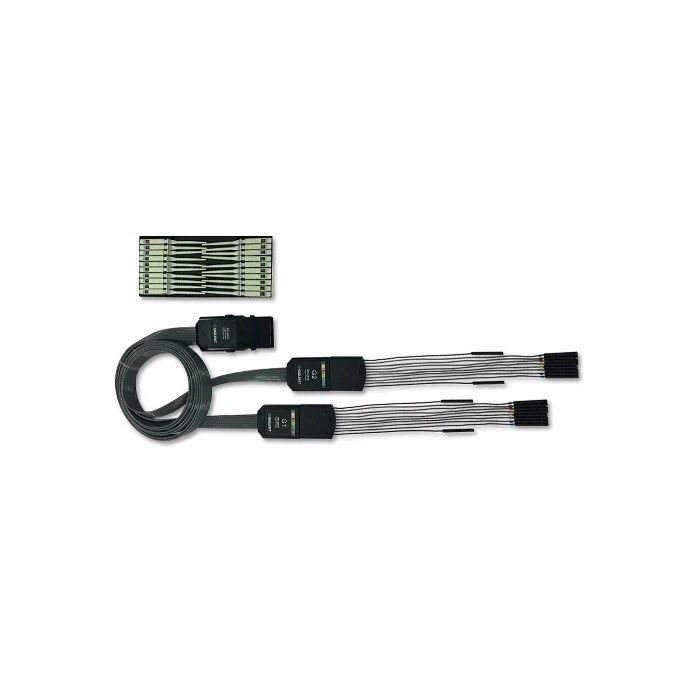

Siglent SPL2016 16 Channel logic probe module HARDWARE ONLY no license. This probe can be used for the SDS2000X and SDS5000X Series oscilloscopes.

Siglent SDS6208L
Low Profile Digital Oscilloscope, 2 GHz; 8 channels

Order #: SDS6208L

Mfg #: SDS6208L

Availability: Ships in 3-4 weeks

$37,812.00

Qty
Siglent SDS6108L
Low Profile Digital Oscilloscope, 1 GHz; 8 channels

Order #: SDS6108L

Mfg #: SDS6108L

Availability: Ships in 3-4 weeks

$29,762.00

Qty
Siglent SDS6058L
Low Profile Digital Oscilloscope, 500 MHz; 8 ch

Order #: SDS6058L

Mfg #: SDS6058L

Availability: Ships in 3-4 weeks

$21,712.00

Qty
Siglent SDS6204L
Low Profile Digital Oscilloscope, 2 GHz; 4 channels

Order #: SDS6204L

Mfg #: SDS6204L

Availability: Ships in 3-4 weeks

$17,112.00

Qty
Siglent SDS6104L
Low Profile Digital Oscilloscope, 1 GHz; 4 ch

Order #: SDS6104L

Mfg #: SDS6104L

Availability: Ships in 3-4 weeks

$13,662.00

Qty
Siglent SDS6054L
Low Profile Digital Oscilloscope, 500 MHz, 4 ch

Order #: SDS6054L

Mfg #: SDS6054L

Availability: Ships in 3-4 weeks

$9,522.00

Qty

Parameters:	SPL2016
Channels	16
Input Impedance	100 KΩ\|\|8 pF
Max. Input Voltage	±50 V peak
Threshold Groupings	Pod 2: D15-D8; Pod 1: D7-D0
Threshold Selections	TTL (1.5 V), COMS (2.5 V), 3.3 V_LVCOMS (1.65 V), 2.5 V_LVCOS (1.25 V)
User defined threshold range	±3 V in 10 mv steps
Threshold Accuracy	±?3%*Threshold+200 mv?
Input Dynamic Range	±20 V
Min. Input Voltage Swing	800 mVpp
Max. Input Frequency	Probe: 150 MHz; Line: 50 MHz
Min. Detectable Pulse Width	3.3 ns
Channel Skew	±(1 digital sample interval)
