Product Highlights

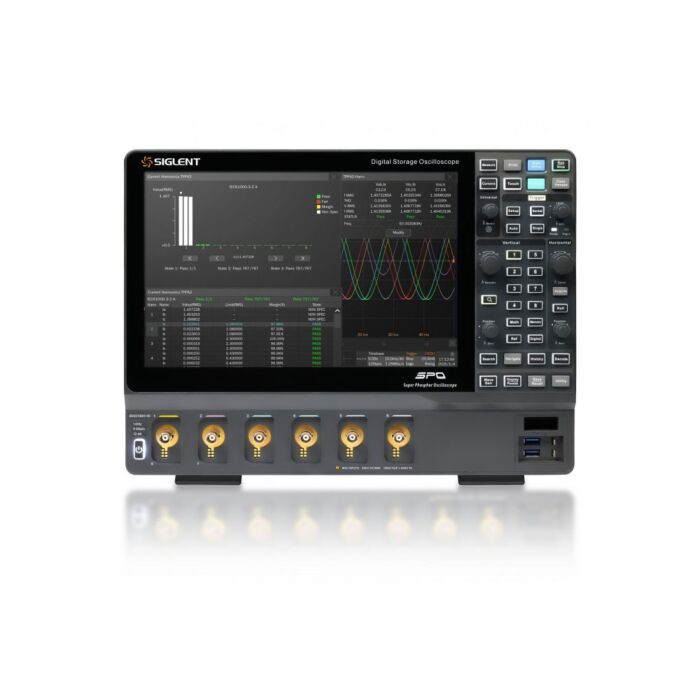

Siglent unveiled the new 8-channel 1 GHz bandwidth high-resolution oscilloscopes SDS5000X HD and SDS5000L series. Featuring a high sampling rate of 5 GSa/s and a memory depth of 2.5 Gpts, these oscilloscopes represent another milestone in Siglent 8-channel product line. Equipped with versatile analysis software, they provide enhanced options for diverse testing scenarios.
Siglent's new SDS5000X series of digital storage oscilloscopes builds on the advancements learned with our SDS2000X scopes. These advancements include a faster architecture, touch-screen, mouse, and keyboard support, and a snappy user interface, all at a price that is about 1/2 that of similar products on the market. Popular and powerful features include both a 256-level intensity graded display as well as color-temperature display modes, 500 uV/div (BW is limited in this sensitivity position), Search & Navigate, and provisions for MSO (optional). The SDS5000X comes with Siglent's most powerful Math capabilities to date.
Features
- Bandwidth – 1 GHz
- Sample Rate – 5 GSa/s maximum (interleaving mode), 2.5 GSa/s (non-interleaving mode)
- Channels – 4 + Ext
- Record Length – Up to 250 MPts
- Segmented Acquisition Mode, Histograms, ERes
- Search & Navigate
- FFT – 2 MPts
- Optional MSO
- Optional AWG
- Serial Decode – Standard for I2C, SPI, UART, CAN, LIN
- Optional Serial Decode for CAN FD, Felx Ray, I2S, MIL-STD 1553B
Each Unit Includes
- USB cable x1
- Quick start x1
- Passive probe (SP3050A) x2 (2-ch model); x4 (4-ch model)
- Certificate of calibration x1
- Power cord x1
