Sartorius ENTRIS II BCE223-1S Precision balance

Overview

Product Highlights

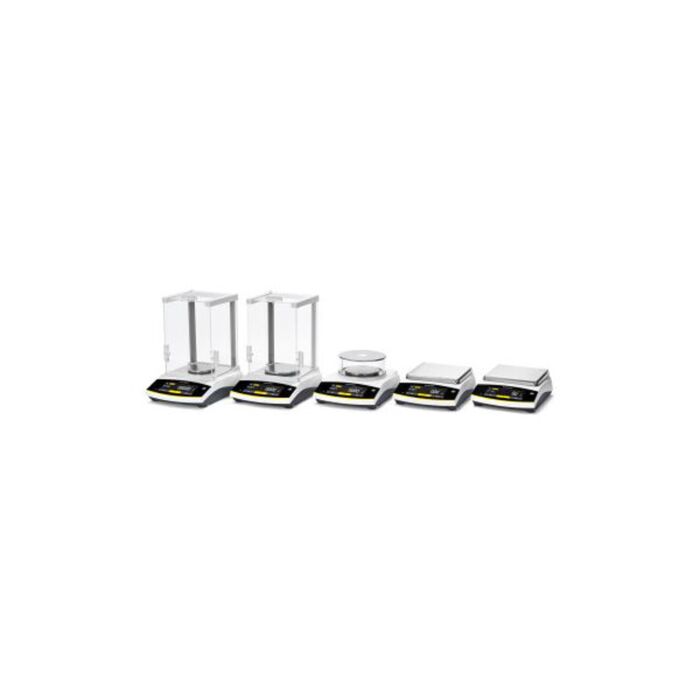

No matter what you're weighing, the new Entris® II balance is always the right choice. Offering unrivalled value and backed by almost 150 years of German engineering expertise, the Entris® II comes in two product lines, so you can find the balance that meets your specific weighing needs.

Our Entris® II Essential line is the only balance in its class offering isoCAL, LED touch technology, and 12 built-in applications at a budget price. With over 40 models from which to choose, you will surely find a model to meet your basic weighing needs

Highly accurate results - guaranteed via monolithic weigh
Cell technology invented by Sartorius Fastest stabilization time in its class - using state-of-the-art
Weighing sensors High chemical resistance - ensured using parts made from hard-wearing polybutylene terephthalate (PBT), stainless steel and glass

Technical Resources

Sartorius Entris II Series Datasheet
Sartorius Entris II Series Brochure
Sartorius Entris II Series Laboratory Balances Application Note

Specifications

Applications	Application Programs	Weighing Dosing Counting Percentage weighing Net total Totalizing Animal weighing Calculation Density Statistics Peakhold Checkweighing Mass unit conversion Underfloor weighing
Compliance Information	Legal Verification	None
Connections (Data)	Data Interface	RS232 USB C
Dimensions	Dimensions (WxDxH)	219 x 317 x 345 mm
	Weighing Chamber Height	240 mm
	Weighing Pan Dimensions	Ø 120 mm
Features	Adjustment	External
	Anti-Theft Locking Device	Kensington Lock, lockdown capability for cable or chain
	Display	LED screen with touch technology
	Languages	English, German, France, Italian, Spanish, Portuguese, Russian, Polish
	Leveling	Manual
	Readability	1 mg
	Repeatability	1 mg
	Typical Stabilization Time	≤1.0 s
	Underfloor Weighing	Yes
General Specifications	Draft Shield	Manual
	External Calibration Weight	200 g \| F1
	Linearity	2 mg
	Sensitivity Drift between +10 °C and +30 °C	±2.0 ppm/K
	Weighing Units	Gram, kilogram, carat, pound, ounce, troy ounce, Hong Kong tael, Singapore tael, Taiwan tael, grain, pennyweights, milligram, parts per pound, China tael, mommes, Austrian carat, tola, baht, mesghal and Newton
Operating Conditions	Maximum Weighing Capacity	220 g
Operating Conditions	Operating Conditions - Temperature	+10 – +30 °C
Power Requirements	Power Requirements	100 – 240 VAC, ±10%, 50 – 60 Hz, 0.2 A
Power Requirements	Power Requirements (Secondary)	15 VDC, ±5%, 0.53 A
Product Information	Packaging	400 x 525 x 495 mm
Product Information	Product LIne	Entris® II Essential Line
Weights	Gross Weight	7.7 kg
Weights	Net Weight, approximate	5.9 kg
