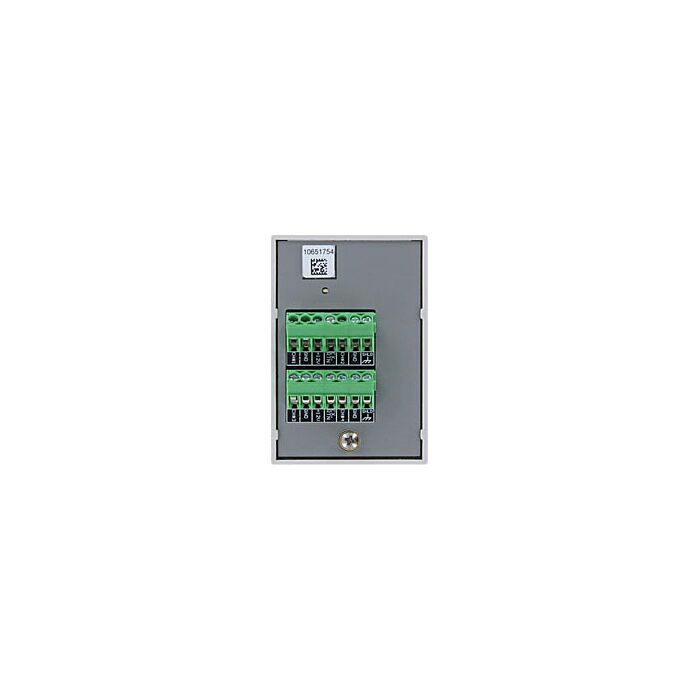

Onset HOBO Data Loggers RXMOD-A1

4-Channel Analog Module

Order #: RXMOD-A1

Mfg #: RXMOD-A1

$150.00

Availability: Ships in 3-4 weeks

This product is available for shipping to the United States and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

15-bit resolution and high accuracy
Each module can have its own logging rate
Input ranges up to 33V
Input Channels Four, single-ended, in addition to smart sensor data channels
Measurement Range and Accuracy 0–25.6 mA DC, ±5 µA ± 0.15% of reading 0–2.5 V DC, ±0.25 mV ±0.2% of reading 0–5 V DC, ±0.25 mV ±0.2% of reading 0–10 V DC, ±0.3 mV ±0.2% of reading 0–20 V DC, ±0.6 mV ±0.2% of reading 0–33 V DC, ±1.20 mV ±0.2% of reading
Resolution 15 bits
Field Wiring Two- or three-wire via screw terminals, 16–24 AWG
Minimum/Maximum Input Voltage 0/33 V DC
Minimum/Maximum Input Current 0/25.6 mA
Minimum Source Impedance for Current Measurement 20 KΩ
Excitation Voltage 12 V DC ±5% at 200 mA maximum per module
