Static Solutions RT-501
Order #: RT-501
Mfg #: RT-501
- Multi Range - 103 – 1012 ohms -100 percent accuracy
- LED Readout - Easy to comprehend
- Multi Function - Measures RTT, RTG and volume resistance
- Compliant - Meets ANSI / ESD, UL and most ASTM standards
- Compliant - to most Military and all EIA and EN standards
- Automatic - 10 to 100 volts, automatic voltage selector
- Automatic - zeroing
- Portable - Small, light weight - 2.6 x 5 x 1.2 inches, 8.4 oz.
- INCLUDES - 2 each 5 pound electrodes and their associated cable AND comes in a hard shell case that provides protection and ease of portability for the equipment.

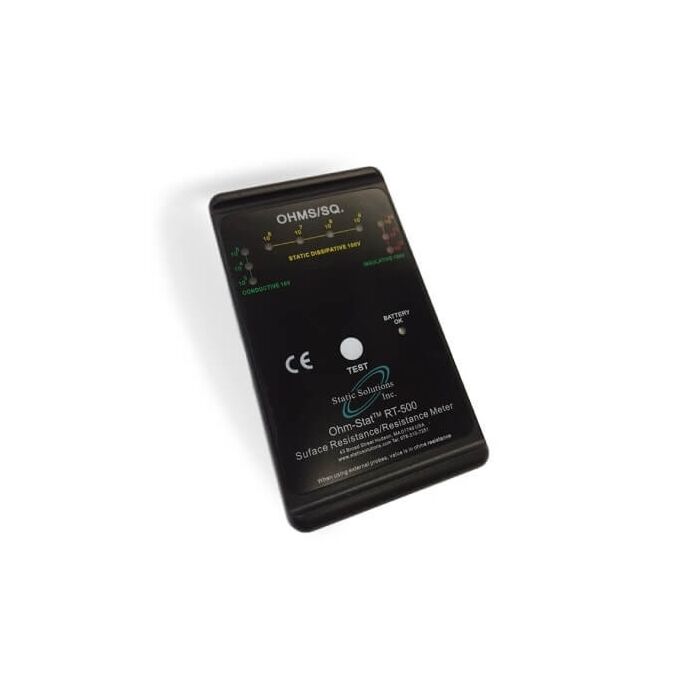

The Static Solutions RT-501 is the premium version of the RT-500. This package INCLUDES the 2 each Industry Compliant 5 pound (2.5") Specialty Electrodes Required for testing Floors, table Tops, Smocks and more per ANSI/ESD S20.20-2014 and TR-53. The instrument has an Easy to Comprehend LED Display and Includes an NIST Certificate of Calibration and compliance tag.
The RT-501 is an advanced version of the RT-500. The Instrument is used to test the electrical resistance values of ESD flooring, matting, chairs, smocks, carts and more. All of these test require a megger capable of ranging from 10 to 100 volts and REQUIRE the use of the 2 each 5 pound electrodes that are included in this kit.These electrodes are required over the parallel bars because they provide a specific weight, density and a diameter that is covered with a conductive material of a specific hardness!
The RT-500 displays the resistivity / conductivity in decades using an easy to comprehend LED readout. The parallel bars located on the back of the device are good for spot checking products and may be useful for some items. But, when performing a compliance verification or your ESD matting, flooring, chairs and carts etc. plug the external electrodes into the device and use them as described in ANSI/ESD S20.20-2014's TR-53.

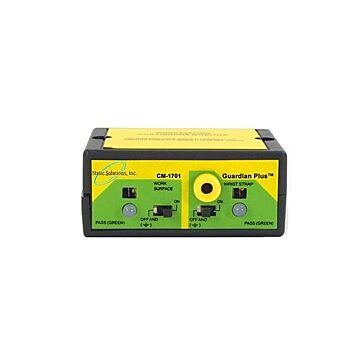

- Static Solutions CM-1701Guardian Plus Constant Monitor (1-Person,1-Wrist Strap,1 Mat)Special Price $67.62 Regular Price $73.50
- Static Solutions CT-8925Deluxe ComboTester Kit with Footplate and SoftwareSpecial Price $1,624.50 Regular Price $1,674.75

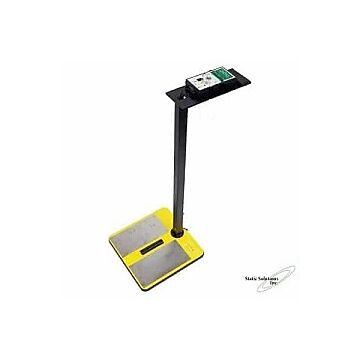

- Static Solutions CT-8900Deluxe ComboTester Kit with Footplate,Stand and SoftwareSpecial Price $1,687.77 Regular Price $1,795.50
- Static Solutions CT-8720Ecomomy ComboTester onlySpecial Price $483.63 Regular Price $514.50
- Static Solutions FM-1126FIELDMETER WITH IONIZER W/ CASE NIST CERTIFICATESpecial Price $555.45 Regular Price $603.75
- Static Solutions CM-1702Guardian Pro-Constant Monitor (2-People,2 Wriststraps)Special Price $111.09 Regular Price $120.75
- Static Solutions CT-8920Deluxe ComboTester w/Software onlySpecial Price $1,169.59 Regular Price $1,244.25
- Static Solutions RT-500ECO. RESISTIVITY METER (LEATHER CASE,BATT,INTERNAL PROBES,NISTSpecial Price $435.61 Regular Price $473.50
- Static Solutions RT-1000STANDARD RESISTIVITY TEST KIT (INCLUDES NIST CERTIFICATE)Special Price $1,164.03 Regular Price $1,265.25
- Static Solutions CT-8725Economy ComboTester Kit with Thin FootplateSpecial Price $585.63 Regular Price $603.75
- Static Solutions CB-9900Calibration Box w/NIST Cert. for Resistivity TestersSpecial Price $254.36 Regular Price $299.25

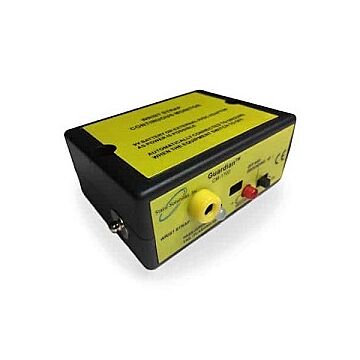

- Static Solutions CM-1700Guardian Constant Monitor (One Wriststrap,One Person)Special Price $47.33 Regular Price $51.45
