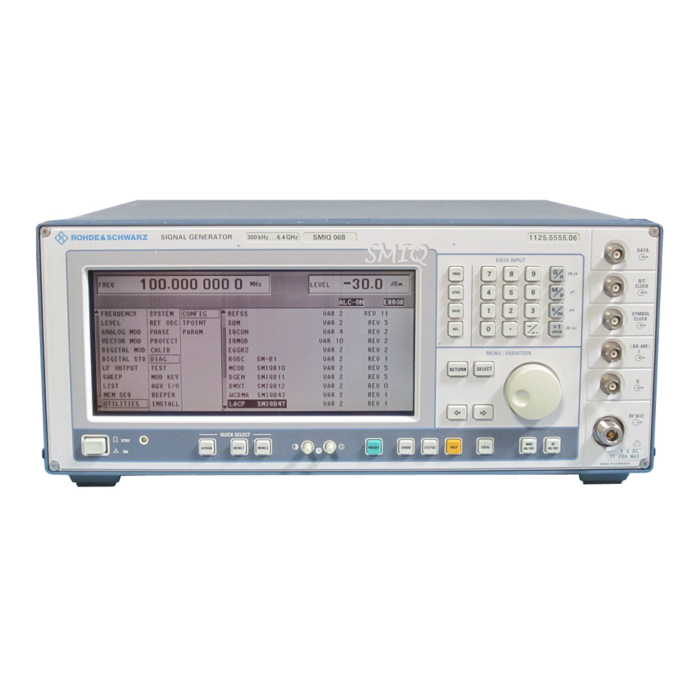

Used Rohde & Schwarz SMIQ06B Vector Signal Generator, 300kHz to 6.4GHz

Product Highlights

• Frequency range: 300 kHz - 6.4 GHz
• Analog and digital modulation
• Versatile and broadband generation of digitally modulated signals up to 18 Msymbol/s
• Generation of TDMA, CDMA, WCDMA and CDMA2000 standard signals to all main mobile radio standards
• Broadband I/Q modulator with outstanding vector accuracy
• Optional internal fading simulator to test specifications of mobile radio standards
• Optional internal noise generator and distortion simulator
• Optional BER measurement
• Optional arbitrary waveform generator
• Low ACP for IS-95 CDMA and WCDMA (option)
• Future-oriented platform concept

The R&S SMIQ06B Vector Signal Generator feature versatile signal generation and signal quality. The Rohde & Schwarz SMIQ06B is useful for development and type-approval testing. The wide frequency range from 300 kHz to 6.4 GHz covers all major radio bands including the IF ranges.

The high-grade I/Q modulator within the SMIQ06B Signal Generator is fitted as standard and ensures minimum error vector magnitude and high intermodulation suppression. Using digital signal processor (DSP) technology, the versatile concept allows the generation of high-precision digital modulation signals at high bit rates without any limitations on modulation modes or standards. In addition to digital modulation, the signal generators provide the full range of analog modulation modes as well as simultaneous modulation capability.
