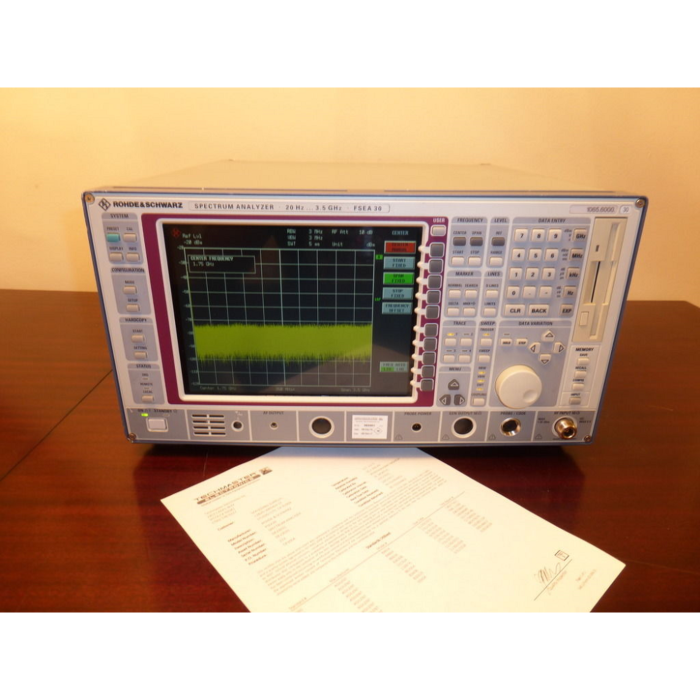

Used Rohde & Schwarz FSEA30 Spectrum Analyzer, 9Hz to 3.5GHz

Product Highlights

• Input impedance: 50 Ohm
• Frequency range: 20 Hz to 3.5 GHz
• Frequency accuracy: 0.000000000025%
• Minimum sweep time: 1 us
• Maximum sweep time: 2500 s
• Resolution bandwidth range: 10 Hz to 10 MHz
• Resolution bandwidth steps: 1/2/3/5
• Video bandwidth range: 1 Hz to 10 MHz
• Video bandwidth steps: 1/2/3/5
• Maximum safe AC input: 0.1 dBm
• Maximum DC input: 0 V
• Displayed average noise range: 81 dBm to 129 dBm
• Trigger source: external, internal
• Trigger modes: freerun, TTL
• Demodulation: AM, FM
• Connector type (main signal) Type-N(f)
• Probe Power: yes
• Noise Source Driver

The R&S FSE30 Spectrum Analyzer from Rohde & Schwarz have was optimized for both for general purpose measurements and to meet the tough requirements of testing advanced digital communication systems. High measurement speed, a modular design and excellent measurement characteristics put the FSEA30 near the top of its class.
