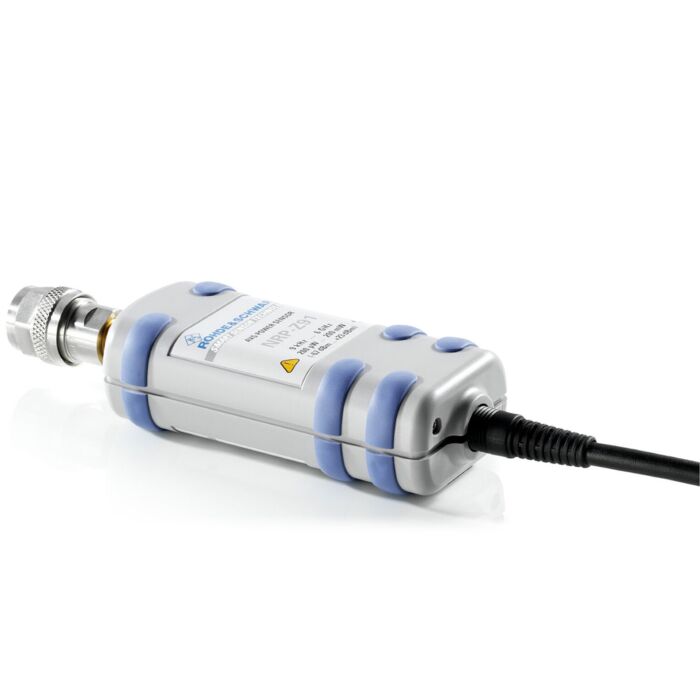

Used Rohde & Schwarz NRP-Z91 Power Sensor, 9KHz-6GHz

Product Highlights

• Measurement range: -67 dBm - +23 dBm
• Frequency range: 9 kHz to 6 GHz
• N connector
• Specially designed for EMC applications
• Measurement of continuous average power
• 90 dB dynamic range for CW and modulated signals
• Low sensitivity to harmonics

In EMC applications, usually only the average power is of interest. This is where the R&S^®NRP-Z91/R&S^®NRP-Z92 average power sensors are the perfect fit. They cover measurement ranges that are used in radio telecommunications (up to 6 GHz) as well as the important lower frequency bands (down to 9 kHz). Users benefit from the excellent properties of the three-path diode power sensors, including a dynamic range of up to 90 dB, very low influence of the modulation on the measurement and outstanding impedance matching.
