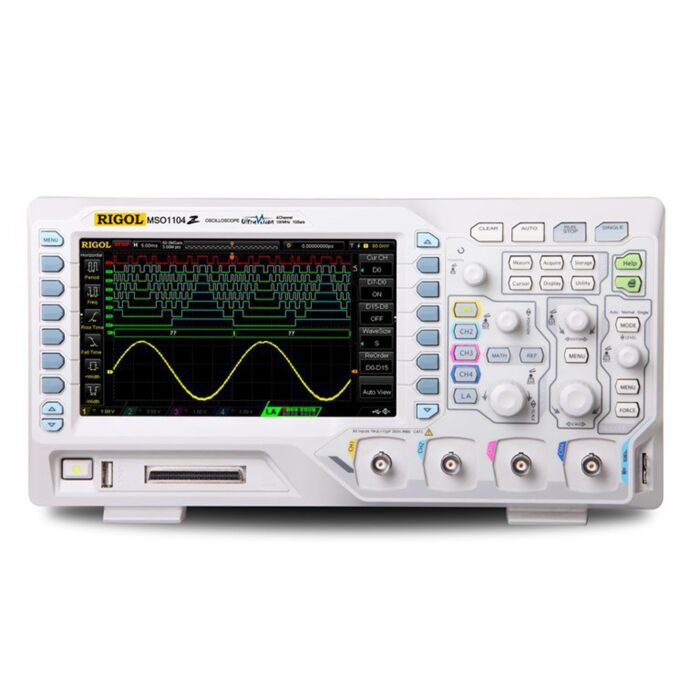

Rigol MSO1000Z Digital Oscilloscope

Rigol MSO1000Z Series Mixed Signal Oscilloscope

Order #: Rigol MSO1000Z Series Mixed Signal Oscilloscope

The MSO1000Z Series is the new economic level Digital Oscilloscope from Rigol to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The MSO1000Z 4 channel oscilloscopes come in 70 or 100 MHz versions with a 7 inch display and Rigol's UltraVision technology and a 16 bit digital input port for mixed signal applications as well as a host of options. Add the optional analysis, decoding, deep memory, and integrated 2 channel waveform generator for a powerful 4 channel scope at an exceptional price.

Why Buy the Rigol MSO1000Z Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Rigol instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!



MSO1000Z series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision technique developed by RIGOL. Featuring extremely high memory depth, wide dynamic range, clear display, excellent waveform capture rate and comprehensive triggering functions, it is a useful commissioning instrument for various fields such as communication, aerospace, defense, embedded systems, computers, research and education. Wherein, the mixed signal digital oscilloscope aimed at the embedded design and test fields allows users to measure analog and digital signals at the same time. MSO1000Z is the one with the most comprehensive functions and the most outstanding specifications among the 100 MHz bandwidth digital oscilloscopes.

MSO1000Z Main Features

  • 1 GSa/s real-time sample rate of the analog channels; up to 24 Mpts memory depth (optional) and 12 Mpts standard memory depth
  • 1 GSa/s real-time sample rate of the digital channels
  • 100 MHz, 70 MHz and 50 MHz analog channel bandwidth
  • 4 analog channels, 16 digital channels
  • Dual-channel 25 MHz signal source (applicable to digital oscilloscopes with source channels)
  • 30 000 wfms/s (dots display) waveform capture rate
  • Real-time hardware waveform recording and playback functions; up to 60 000 frames of waveform can be recorded
  • Intensity graded color display
  • Low base noise, 1 mV/div to 10 V/div ultra-wide vertical dynamic range
  • 7.0 inch WVGA (800*480) TFT LCD, with ultra-wide screen, vivid picture, low power consumption and long service life
  • Adjustable waveform brightness
  • Auto setting of waveform display (AUTO)
  • Up to 15 kinds of trigger functions, including various protocol triggers
  • Standard parallel decoding, supports multiple serial decoding options
  • Auto measurement of 37 waveform parameters (with statistics)
  • Fine delayed sweep function
  • Built-in FFT function
  • Multiple waveform math operation functions
  • Pass/fail test function
  • Standard interfaces: USB Device, USB Host, LAN and Aux
  • Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick, economic and efficient creation and reconfiguration of test system
  • Supports remote command control
  • Built-in help to facilitate information acquisition
  • Supports multiple languages and Chinese/English input
  • Novel and delicate industrial design and easy operation
Bandwidth 70 MHz 100 MHz
Analog Channels 4
Sample Rate 1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel)
Max Memory Depth 12Mpts(standard) ,24Mpts(option)
Max. Waveform Capture rate Up to 30,000 wfms/s
Real Time waveform Record and Replay Up to 60, 000 Frames(Opt.)
Std. Probes RP2200 150MHz BW Passive Probe:4 sets
Built in 2 Ch Source No Yes No Yes
16 Digital Channels for Mixed Signal Analysis Yes Yes Yes Yes

Availability: Ships in 2-3 Weeks
Grouped product items
Product Name Qty
No options of this product are available.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Up to 100MHz Bandwidth, 4 analog channels
  • 16 digital channels for Mixed Signal analysis
  • 1G Sa/s Real-time Sample Rate
  • 12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
  • Innovative "UltraVision" technology
  • Up to 30,000wfms/s Waveform Capture Rate
  • 7 Inch WVGA (800x480), multiple intensity levels waveform display
  • Built in 2 channels 25MHz waveform Generator(MSO1000Z-S)

Each Unit Includes

  • Packing Kit
  • Product CD
  • Calibration CD
  • Power Cord
  • USB Cable
  • Ultrastation Basic
  • Probes - One per channel
  • RPL1116
