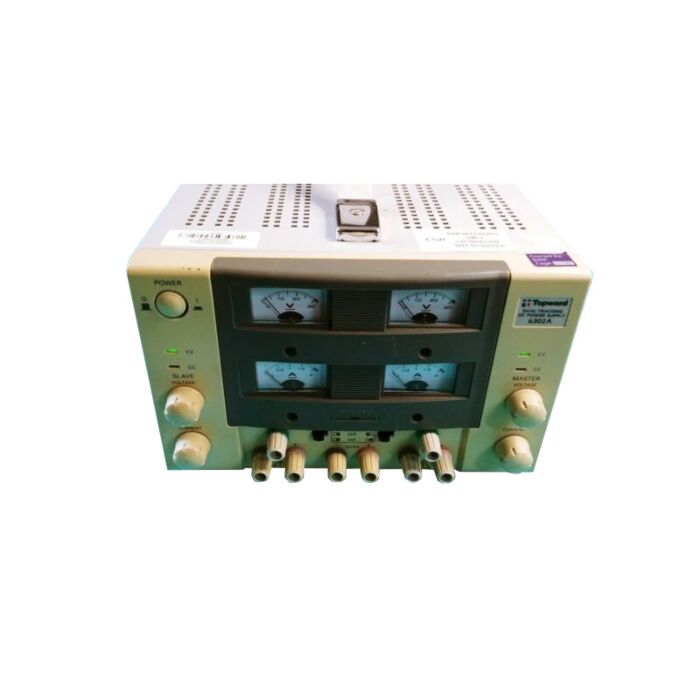

Topward 6302A for Rent, Fireberd Communication Analyzer Portable, Performs Bit Error

Topward 6302A Highlights

• Output Voltage Zero to rated voltage continuously variable with front panel voltage knob
• Output Current Zero to rated current continuously variable with front panel current knob
• Line Regulation CV±0.01%+2mV; CC±0.01%+2mA
• Load Regulation CV±0.01%+2mV; CC
• Ripple & Noise CV
• Transient Response
• Output Impedance
• Operating Range 0 to 40° C ambient temperature
• Display Accuracy 3% of full scale
• Overload Protection Automatic crossover from CV to CC mode
• Series Connection Different models can be chained to increase output up to 240 Vdc
• Parallel Connection Another same model can be paralleled to increase output to 24 Amps
• 5V/5A Fixed Supply: Regulation
• Tracking Accuracy ± 0.2%+10mV
• Independent: Two fully independent variable supplies at rated voltage and current and a fixed 5V/5A supply
• Series: One variable supply with 2X rated voltage output at rated current. Or, One dual polarity tracking supply with rated output and current. Plus A 5V/5A supply
• Parallel: One variable supply with rated voltage at 2X rated current and a fixed 5V/5A supply
• Power Requirement 100/120/220/240±10% Vac; 50/60Hz single phase
• Accessories Supplied Power cord; hook-up leads; instruction manual
• Signal & performance analysis on datacom, T1/FT1, 2M/Nx64, DDS, E3 and T3 services, Fast Packet Testing, ISDN Testing
