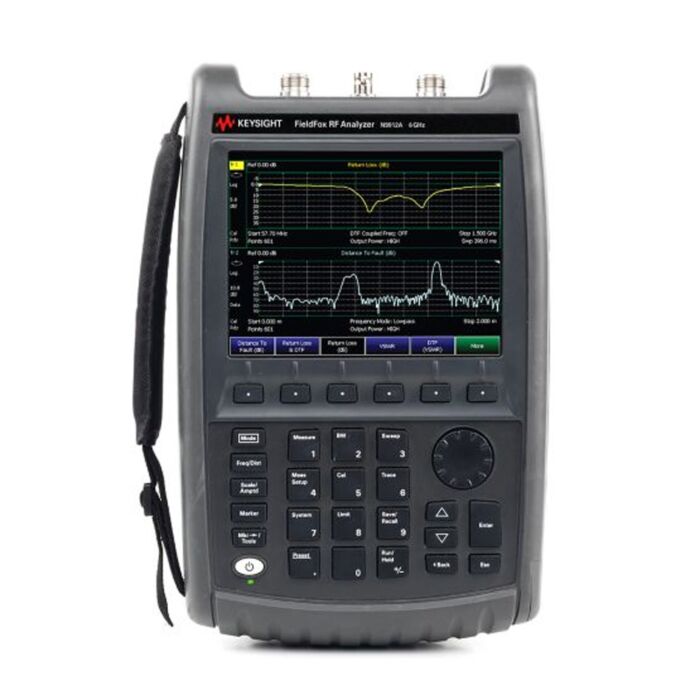

Keysight N9912A for Rent, FieldFox Handheld RF Analyzer, 4GHz and 6GHz
FieldFox Handheld RF Analyzer 4GHz and 6GHz
Order #: N9912A-RENT2
Mfg #: N9912A-RENT2
Call for price
Call for price
Keysight N9912A for Rent, FieldFox Handheld RF Analyzer, 4GHz and 6GHz
FieldFox Handheld RF Analyzer 4GHz and 6GHz
Order #: N9912A-RENT2
Mfg #: N9912A-RENT2
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability:
In stock
This item has NEW version starting at
$8,202.00
Shop now
Product Highlights
- 2 MHz to 4/6 GHz
- Directivity > 42 dB
- CAT: Distance-to-fault, return loss, cable loss
- VNA: S11 mag and phase, S21 mag, time doman with gating
Spectrum Analyzer, Interference Analyzer
- 5 kHz to 4/6 GHz
- DANL: -148 dBm, +18 dBm TOI
- Spectrogram, waterfall display, record, and playback
Independent Source, Vector Voltmeter (VVM), Power Sensor and Channel Power Measurements
- RF source: 2 MHz to 4/6 GHz, CW and tracking
- VVM: 2 MHz to 4/6 GHz, compare phase and electrical length
- Average and peak power measurements with USB sensor
- Channel power measurements: 100 kHz to 4/6 GHz, no sensor needed
FieldFox Instrument Attributes
- New: Remote control via iPad or iPhone
- Battery life: 4-hours; weight: 2.8 kg or 6.2 lbs
- Operating temperature: -10 to +55 °C (14 to 131 °F)
Applications
- Cell site management - cable and antenna test
- RF spectrum monitoring and interference analysis
- Active and passive device test
Accuracy
- Get precise measurements that agree with benchtop results
- QuickCal - Built-in calibration - no cal kit required
- CalReady - Immediate distance-to-fault measurements at the test port
Rugged
- Dust-free design with no fans, no vents extends instrument reliability in harsh environments
- Water-resistant; withstands salty, humid environments
- MIL-PRF-28800F Class 2 compliant
- GPS data with external USB GPS receiver
FieldFox RF analyzers are designed to withstand your toughest working conditions. To accelerate your work, each operating mode has a task-driven user interface that saves time in the field. Step up to FieldFox - and boost your readiness.
Maximum Frequency | 4 or 6 GHz |
---|---|
CAT/VNA Start Frequency | 2 MHz |
SA Start Frequency | 5 kHz |
Dynamic Range | 49 dB |
Output Power | < 7 dBm |
Trace Noise | n/a |
Number of Built-In Ports | 2 ports |
Best Speed at 201 Point, 1 Sweep | 240 ms |
Instrument Type | Combination Analyzer |
Cable and Antenna Analyzer | Yes |
Spectrum Analyzer | Yes |
Vector Network Analyzer | No |
Applications |
|
Components |
|
Additional CAT/VNA Based Features |
|
Additional SA Based Features | Built-In Power Meter |
System Features | GPS Receiver - External Only |
Power Measurement Using USB Sensor |
|
Standard Attenuator Range | 31 dB |
Standard Attenuator Step | 1 dB |
Maximum Dynamic Range 3rd Order @1 GHz | n/a |
DANL @1 GHz | -148 dBm |
Maximum Analysis Bandwidth | n/a |
Phase Noise @1 GHz (1 MHz offset) | -115 dBc/Hz |
Phase Noise @1 GHz (10 kHz offset) | -88 dBc/Hz |
TOI @1 GHz (3rd Order Intercept) | +18 dBm |
Applications Available | Yes |
Frequency | 5 kHz to 6 GHz |
Overall Amplitude Accuracy | ±0.5 dB |
Bandwidth Options | 5 MHz |
Applications-General Purpose |
|
Handheld | Yes |
