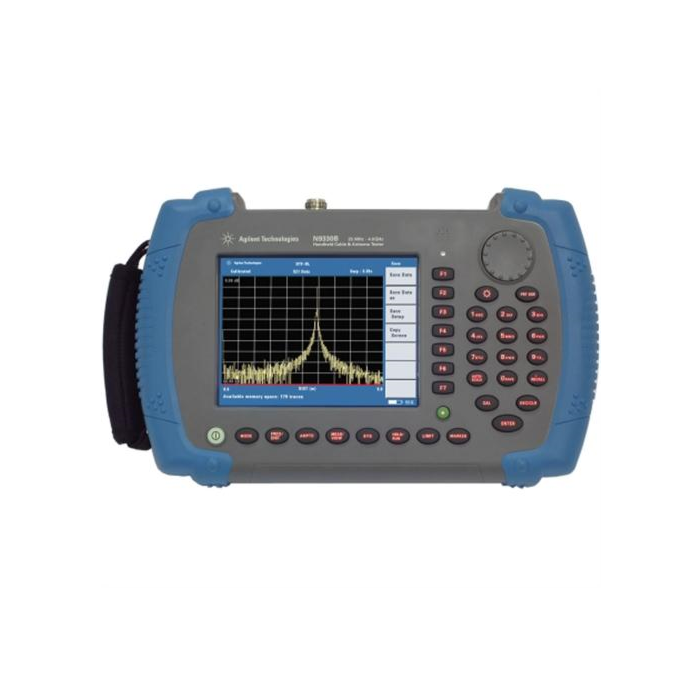

Keysight N9330B for Rent, Handheld Cable and Antenna Tester, 25MHz to 4GHz, 100kHz

Keysight N9330B Highlights

N9330B is a handheld, easy to use, battery operated cable and antenna tester for field installation and maintenance. It measures return loss, SWR, cable loss and distance-to-fault test functions for wireless service providers (WSPs), Aerospace & Defense customers, TV & Broadcasting customers and contractors for the above.

• Frequency range: 25 MHz to 4 GHz
• Frequency domain
• Return loss vs. frequency
• VSWR vs. frequency
• Cable loss test
• Distance to Fault (DTF)
• Return loss vs. distance
• VSWR vs. distance
• Sweep time: 3.0 ms/data point (full span, 521 trace point, CW sweep, typically)
• Battery: Lithium-ion, 4 hours operating time
• Support USB connectivity for memory stick and PC connection
• 6.5" TFT color LCD for indoor and outdoor use
• Optional features
• Precision mechanical short/open/50 ohm load, DC to 4 GHz, N (M)
• Precision mechanical short/open/50 ohm load, DC to 4 GHz,7/16 DIN (M)
• Electronic calibrator
• Phase-stable extension cable 1.5 m, N (M) to N (F)
