Keysight 86602A FOR RENT

Keysight 86602A Highlights

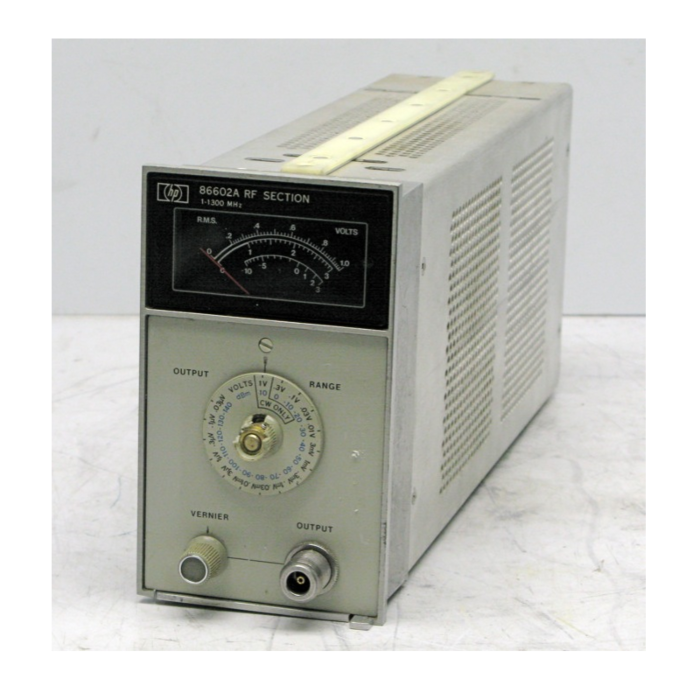

• The 86602A RF Plug-In is for use with the 8660A/B Mainframe
• Frequency coverage from 1MHz to 1.3GHz
• Resolution: 1Hz Output levels: +13 dBm to -146dBm into 50 Ohms in 1 db steps Completely TTL Programmable The 86632A Modulation Section Provides AM/FM capability when used with 86602A RF section Includes modulation meter and 400 Hz and 1 kHz internal oscillators
• This unit is marked "20 MHz oscillator"
• Completely TTL Programmable Sale includes both plug-ins, 86602A and 86632A only, no frame(s) included or available
• Data sheet included. Excellent visual appearance, used, no damage, untested because we don't have an 8660A/B frame Sold with a no questions 14 day return policy
• The 8660 system is shown in the group photo
• Modulation facilities are added with 86632A Modulation Section (near left) in central plug-in position
• Near center pair of plug-ins are RF Sections, 86601A for 0.01-110 MHz & 86602A for 1-1300 MHz
