Product Highlights

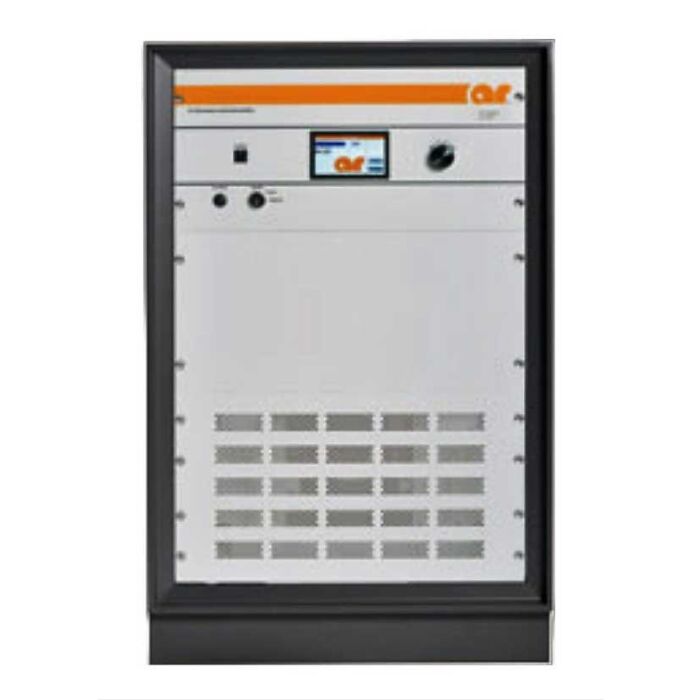

The Amplifier Research 1000A400 is a solid-state, selfcontained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. When used with a sweep generator, will provide a minimum of 1000 watts of RF power. Included is a front panel gain control which permits the operator to conveniently set the desired output level. The Amplifier Research 1000A400 is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the amplifier.
The DCP on the Amplifier Research 1000A400 uses a color LCD touch screen display to indicate the operate status and fault conditions if an over-temperature or power supply fault has occurred. The unit can be returned to operate when the condition has been cleared. All amplifier control functions and status indications are available remotely through the included Remotes Package. The Remotes Package includes GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet. Optional RF sample ports are available to allow for any forward and reverse power monitoring.
| Frequency |
10kHz - 400 MHz |
| Rated Output Power |
1200W typical, 1000W min |
| Gain |
60 dB minimum |
| Noise Figure |
8 dB typical |
