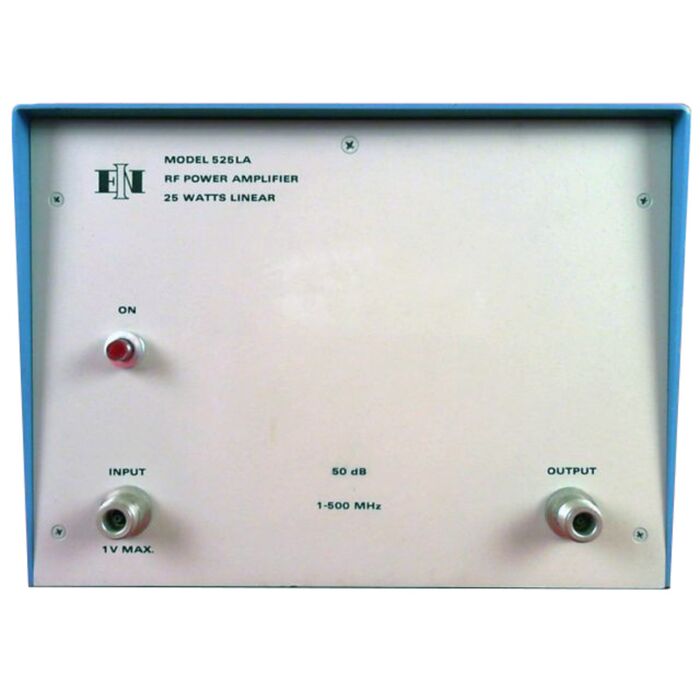

ENI 525LA for Rent, RF Amplifier, 1-500MHz/25W

Product Highlights

The ENI 525LA Amplifier is a broad band rugged source of RF power, useful for RFI/EMI, power meter calibration, laser modulation and general laboratory applications. The 525LA produces over 25 Watts of Class A linear power output over the entire frequency range from 1 MHz to 500 MHz, with a power gain of 50 dB. With a flat frequency response over the range of 1 to 500 MHz the ENI 525LA will provide 25 Watts of Class A power. When used in applications below 200 MHz the unit will provide output power in excess of 40 Watts. The versatility and outstanding performance specifications of the 525LA Amplifier makes it ideal for use in applications such as RF transmission, component testing and more.

• Frequency range 1.0 to 500 MHz
• 25 W output power
• 50 dB gain (nominal)
• 50 Ohm impedance
• N(f) connectors, input/output
• 115/230 VAC; 50/60 Hz operation
• Weight: 42 lb
• Size: 190 mm (7.5 in)H x 259 mm (10.2 in)W x 434 mm (17.1 in)
