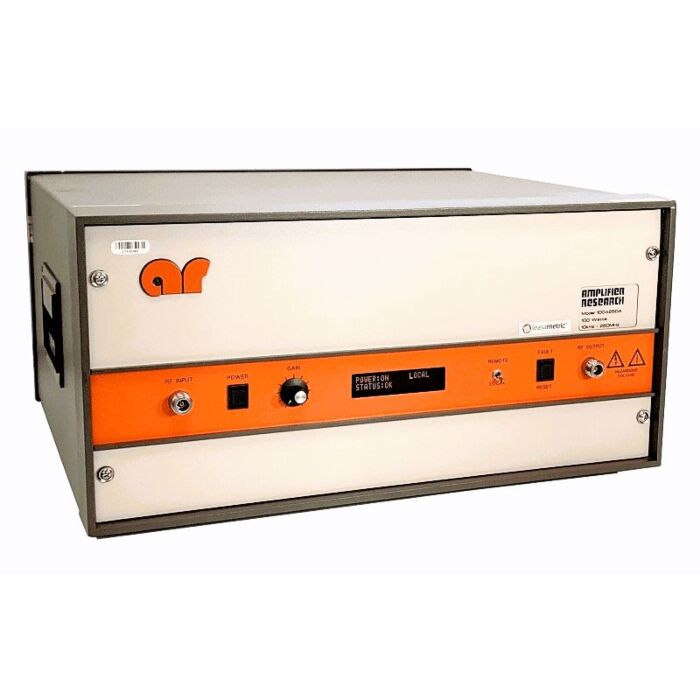

Amplifier Research 100A400A for Rent, RF Amplifier, CW, 10kHz to 400MHz, 100W

Product Highlights

The Amplifier Research 100A400A, when used with a sweep generator, will provide a minimum of 100 watts of RF power. Included is a front panel gain control which permits the operator to conveniently set the desired output level. All amplifier control functions and status indications are available remotely through the optional Remotes Package. The Remotes Package includes GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet.

The Amplifier Research 100A400A is a solid-state, self-contained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. The front panel indicates the operate status and fault conditions if an overtemperature or power supply fault has occurred. The Amplifier Research 100A400A is protected from RF input overdrive by an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0dBm.
