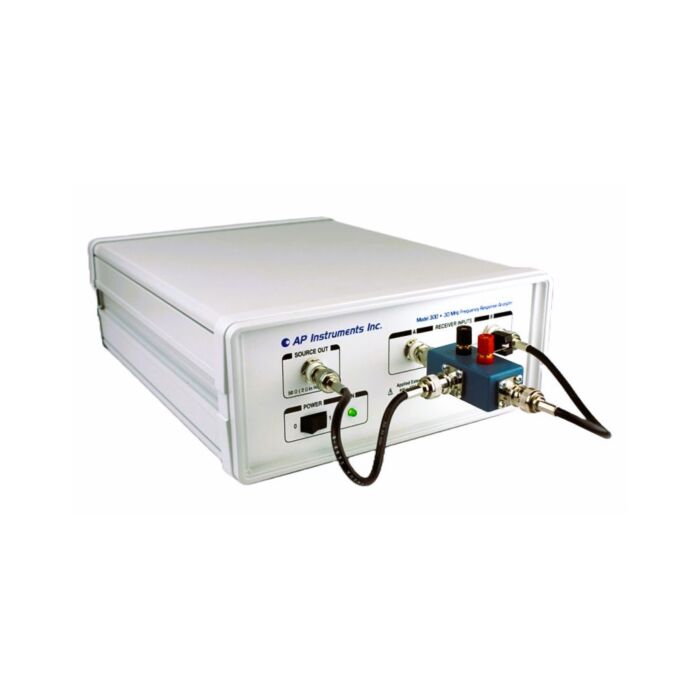

Frequency Response Analyzer, 0.01 Hz - 30 MHz
Order #: AP310-RENT3
Mfg #: AP310
Product Highlights
The Ridley Engineering AP310 Frequency Response Analyzer is designed specifically for the power supply industry and is engineered with crucial features to make sensitive gain-phase measurements in high noise environments.
Features and Specifications of the Ridley Engineering AP310 Frequency Response Analyzer include:
Features:
- Used to measure:
- Transfer functions
- Loop gain and phase
- Output impedance
- Audiosusceptibility or PSRR
- Input impedance
- Advanced analog and digital signal processing allows measurement of large and small signals
- Provides rugged and reliable results in all environments including challenging power supply applications
- Helps accelerate the design process by allowing measurement of individual passive power components including:
- Power capacitors
- Power inductors
- Power transformers
- Leakage inductance
- Winding capacitance
- Drive power circuits hard with the embedded power amplifier on the output sources with 20 V p-p at 2 ohms
- Graphically adjust variable output source for problematic measurement areas all the way from 7 V rms down to 1 mV
- Directly measure analog input signals up to 5V p-p without any attenuation
- Link measurements directly with RidleyWorks design software to compare with modeling
- Inject voltage or current from 0.1 Hz to over 30 MHz with a single wideband injection transformer
- Measure power capacitors and magnetics with impedance test fixtures
- Test PFC circuits as low as 0.01 Hz
- Test EMI filters and components up to 30 MHz
- Measure high gain current-mode loops easily with a 117 dB dynamic range
- Link to any Windows application with DDE data sharing
- Fast and user-friendly software helps maximize productivity
- New isolated USB for enhanced noise immunity
- Use anywhere by USB connection to any PC, notebook or tablet
- Developed and made in the USA with the latest technology
Specifications:
- Lower frequency: 0.01 Hz
- Upper frequency: 30.00 MHz
- Single-level output voltage:
- 1.25 mV to 1.77 V rms (5 V p-p)
- 50Ohm output impedance
- Power amplifier output voltage:
- 5 mV to 7 V rms (20 V p-p)
- 2Ohm output impedance
- Power amplifier output current (Fan-cooled): 0 to 500 mA
- Single output DC offset:
- +/- 10 VDC
- Software adjustable
- Variable signal with frequency: Graphical control, overlays with data for maximum productivity
- Number of data points:
- 10,001
- Maximum software selectable
- Receiver Input:
- Receiver Bandwidth:
- 1 Hz to 1 kHz
- Software selectable
- Sweep averaging samples:
- 1 to 999
- Software selectable
- Absolute maximum safe input:
- +/- 15 V with 1x probes (provided)
- +/- 150 V with 10x probes (provided)
- 1000 VAC with isolation probe accessory
- Measurable signal range: 5 uV to 1.77 V
- Input capacitance: 25 pF
